9WV0948P1H001

Active

Sanyo Denki America Inc.

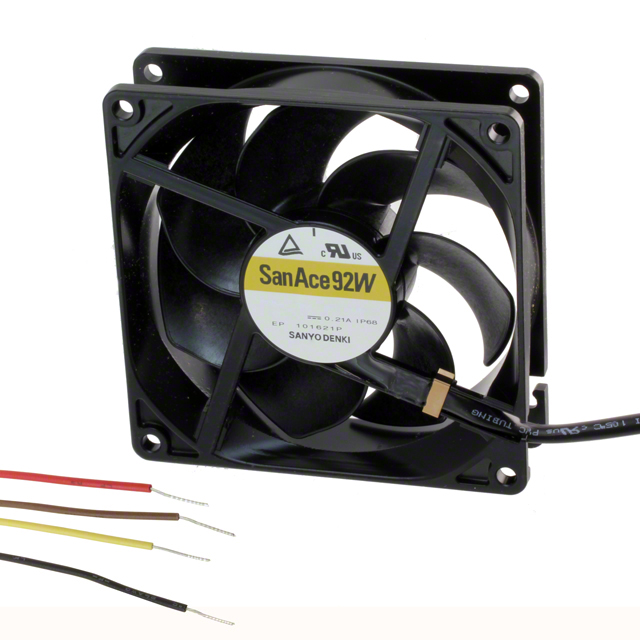

FAN AXIAL 92X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9WV0948P1H001

Air Flow	178 CFM
Air Flow	4.98 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.82 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	39.4 W
RPM	8500 RPM
Static Pressure	385 Pa
Static Pressure	1.55 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	52.8 VDC
Voltage Range [Min]	40.8 VDC
Weight	264.9 g
Weight	0.584 lb
Width [y]	38 mm

FAN AXIAL 92X38MM 48VDC WIRE

Part	RPM	Air Flow	Air Flow	Power (Watts)	Noise	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Weight	Weight	Width [y]	Fan Type	Material - Frame	Voltage - Rated [custom]	Approval Agency	Termination	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Ingress Protection	Material - Blade	Bearing Type
Sanyo Denki America Inc. 9WV0948P1H001	8500 RPM	178 CFM	4.98 m³/min	39.4 W	64 dB(A)	0.82 A	-20 °C	70 °C	-20 C	70 °C	PWM Control, Speed Sensor (Tach)	264.9 g	0.584 lb	38 mm	Tubeaxial	Plastic	48 VDC	CSA, TUV, UL	4 Wire Leads	385 Pa	1.55 in H2O	52.8 VDC	40.8 VDC	IP68 - Dust Tight, Waterproof	Plastic	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 92mm L x 92mm H Ball 178.0 CFM (4.98mł/min) 4 Wire Leads
