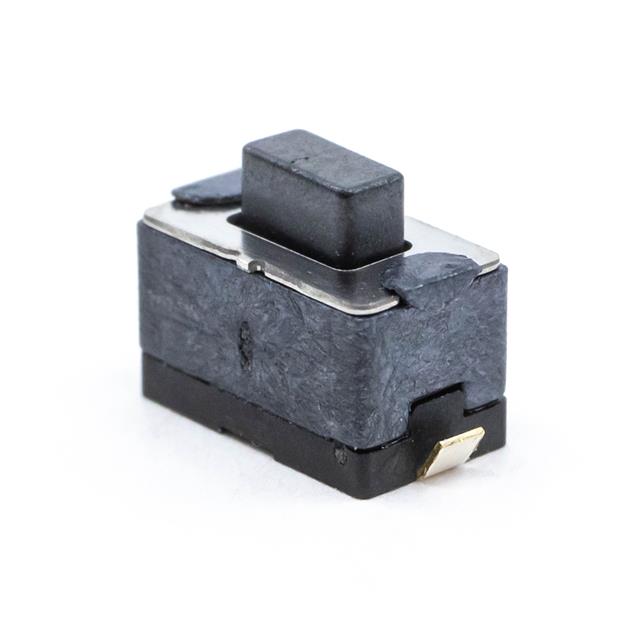

TL6400BF160QJ

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6400BF160QJ	TL6400 Series

Actuator Height off PCB, Vertical	5 mm	5 mm
Actuator Height off PCB, Vertical	-	4.3 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Rectangular Button	Rectangular Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	-	30000 Steps
Mounting Type	Surface Mount	Surface Mount
Operating Force	-	260 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6 mm	6 mm
Outline [y]	3.5 mm	3.5 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.15 mm	0.15 mm
Termination Style	J Lead	J Lead

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Actuator Height off PCB, Vertical	Mounting Type	Outline [y]	Outline [x]	Illumination	Ingress Protection	Switch Function	Actuator Type	Actuator Orientation	Contact Rating @ Voltage	Operating Force	Mechanical Life	Actuator Height off PCB, Vertical [z]
E-Switch TL6400BF160QJ	J Lead	SPST-NO	85 °C	-40 °C	0.15 mm	5 mm	Surface Mount	3.5 mm	6 mm	Non-Illuminated	IP67 - Dust Tight, Waterproof	Off-Mom	Rectangular Button	Top Actuated	0.05 A, 12 VDC
E-Switch TL6400BF260QJ	J Lead	SPST-NO	85 °C	-40 °C	0.15 mm	5 mm	Surface Mount	3.5 mm	6 mm	Non-Illuminated	IP67 - Dust Tight, Waterproof	Off-Mom	Rectangular Button	Top Actuated	0.05 A, 12 VDC	260 gf	30000 Steps
E-Switch TL6400AF160QJ	J Lead	SPST-NO	85 °C	-40 °C	0.15 mm		Surface Mount	3.5 mm	6 mm	Non-Illuminated	IP67 - Dust Tight, Waterproof	Off-Mom	Rectangular Button	Top Actuated	0.05 A, 12 VDC			4.3 mm
E-Switch TL6400AF260QJ	J Lead	SPST-NO	85 °C	-40 °C	0.15 mm		Surface Mount	3.5 mm	6 mm	Non-Illuminated	IP67 - Dust Tight, Waterproof	Off-Mom	Rectangular Button	Top Actuated	0.05 A, 12 VDC	260 gf	30000 Steps	4.3 mm
