R124075323

Active

Radiall USA, Inc.

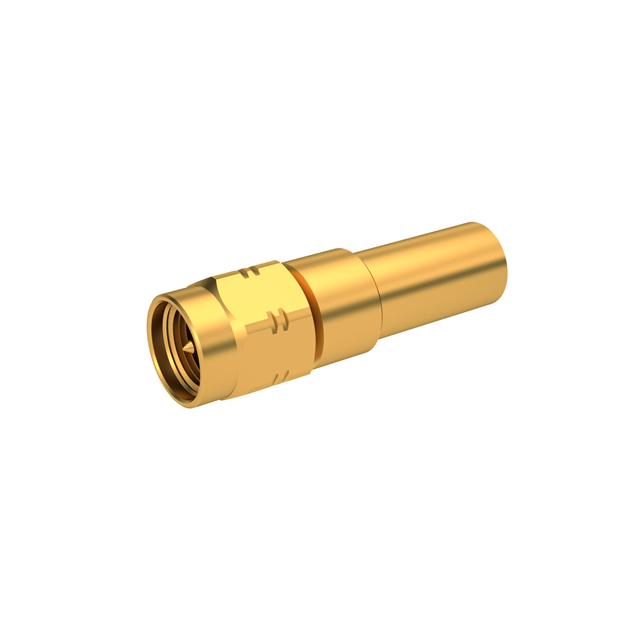

SMA / STRAIGHT PLUG FULL CRIMP-T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT PLUG FULL CRIMP-T

Technical Specifications

Parameters and characteristics for this part

Specification	R124075323

Body Finish	Gold
Body Material	Brass
Cable Group	141
Cable Group	RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Connector Type	Voltage Rating	Center Contact Plating	Body Material	Number of Ports	Connector Style	Dielectric Material	Mounting Type	Cable Group	Cable Group	Center Contact Material	Contact Termination	Shield Termination	Housing Color	Body Finish	Impedance
Radiall USA, Inc. R124075323	-65 ░C	165 °C	12.4 GHz	Male Pin Plug	250 VDC	Gold	Brass	1	SMA	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	141	RG-58	Brass	Crimp	Crimp	Gold	Gold	50 Ohms
Radiall USA, Inc. R124071123	-65 ░C	165 °C	12.4 GHz	Male Pin Plug	250 VDC	Gold	Brass	1	SMA	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)		316 RG-174	Brass	Crimp	Crimp	Gold	Gold	50 Ohms
Radiall USA, Inc. R124075320	-65 ░C	165 °C	12.4 GHz	Male Pin Plug	335 V	Gold	Brass	1	SMA	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	141	RG-58	Brass	Crimp	Crimp	Silver	White Bronze	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
