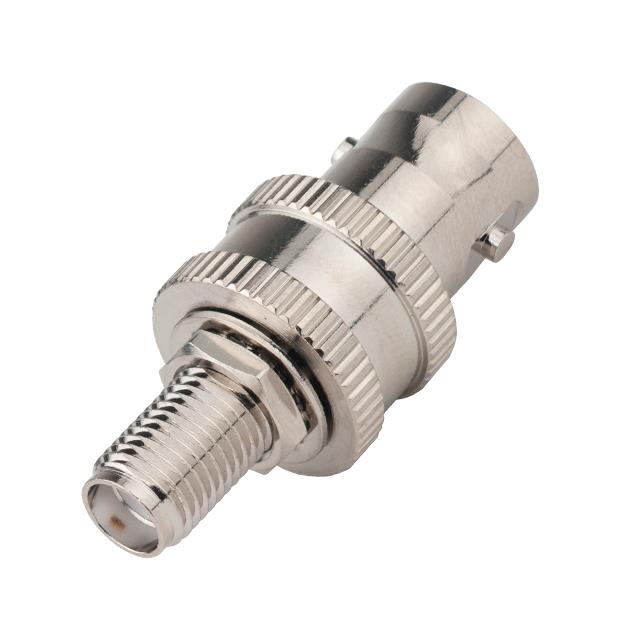

| Adapter Series | BNC to SMA | SMA to UHF, TNC to TNC, Dual, RP-TNC to N, QMA to QMA, BNC to FME, BNC to SMA, SMA to TNC, SMA to SMA, TNC to TNC, BNC to BNC, Dual, RP-SMA to N, FME to FME, TNC to UHF, SMA to UHF Mini, Mini to FME, UHF, SMA to RP-SMA, TNC to FME, SMA to SMB, N to FME, RP-N to N, BNC to TNC, N to TNC, SMA to MHF |
| Adapter Type | Jack to Jack | Plug to Jack, Plug to Plug, Jack to Jack |
| Body Finish | Nickel | Nickel, White Bronze, Silver, Gold |
| Body Material | Brass | Brass, Stainless Steel |
| Cable Group | - | RG-8, 213, 8A |
| Center Contact Material | Beryllium Copper | Brass, Phosphor Bronze, Beryllium Copper |
| Center Contact Plating | Gold | Gold, Silver |
| Center Gender | Female to Female | Male to Male, Female to Female |
| Connector Style | - | SMA, N Type, BNC |
| Connector Type | - | Female Socket, Jack, Male Pin, Plug |
| Contact Finish | - | Gold |
| Contact Material | - | Brass |
| Contact Termination | - | Solder Cup, Crimp |
| Conversion Type | Between Series | Between Series, Same Series |
| Convert From (Adapter End) | Female Socket, SMA Jack | Female Socket, SMA Jack, N Jack, QMA Jack, BNC Jack, N Plug, Male Pin, SMA Plug, Male Pin, UHF Plug, Male Pin, TNC Jack, Female Socket, FME Plug, Male Pin, BNC Plug, Male Pin, UHF Mini Jack, Female Socket, SMB Jack, Male Pin, UHF Mini Plug, Male Pin, RP-N Jack, Male Pin, MHF Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack | Male Pin, UHF Mini Plug, TNC Jack, Female Socket (2), SMA Plug, Female Socket, RP-TNC Plug, QMA Plug, FME Plug, SMA Jack, N Plug, BNC Jack, TNC Plug, BNC Plug, N Jack, RP-SMA Plug, FME Jack, UHF Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock, Threaded | Snap-On, Bayonet Lock, Threaded |
| Features | - | Extended Insulation |
| Frequency - Max [Max] | 4 GHz | 1 - 6000 GHz |
| Housing Color | - | Silver |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Impedance | - | Non-Constant |
| Insertion Loss | - | 0.13 - 0.2 dB |
| Mating Cycles | - | 500 |
| Mounting Feature | Bulkhead | Bulkhead, Bulkhead - Rear Side Nut |
| Mounting Type | - | Free Hanging (In-Line), Right Angle, Free Hanging, Cap |
| Number of Ports | - | 1 |
| Operating Temperature [Max] | 165 °C | 85 - 165 °C |
| Operating Temperature [Min] | -65 ░C | -65 - -40 ░C |
| Shield Termination | - | Solder, Crimp |
| Style | Straight | Straight, T-Shape, Right Angle |
| Voltage Rating | - | 335 - 1000 V |
