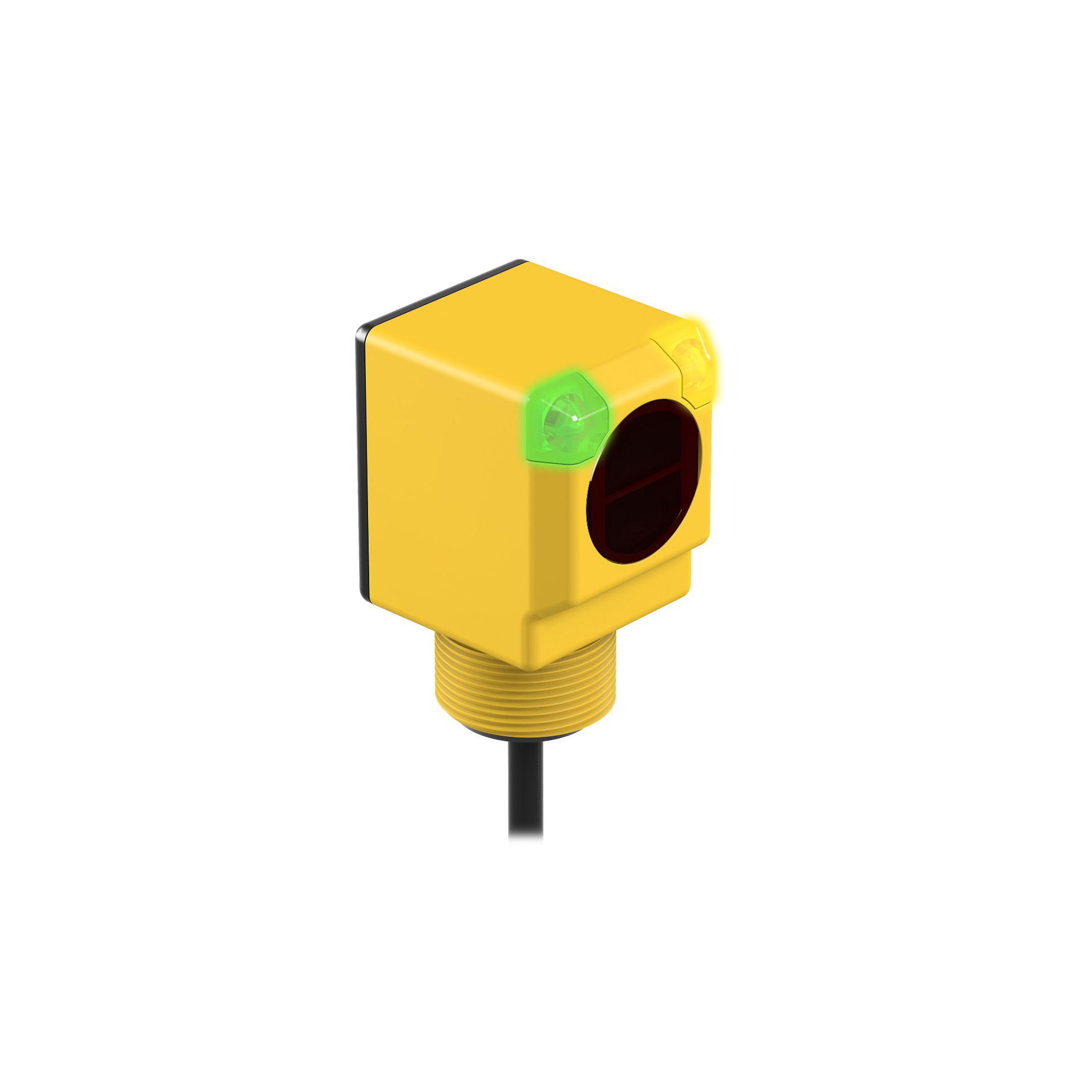

Q40AW3FF400 W/30
ActiveBANNER ENGINEERING
RANGE: 400 MM; INPUT: 20-250V AC
Deep-Dive with AI
Search across all available documentation for this part.
Q40AW3FF400 W/30
ActiveBANNER ENGINEERING
RANGE: 400 MM; INPUT: 20-250V AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q40AW3FF400 W/30 |
|---|---|
| Cable Length | 354.33 in |
| Cable Length | 9 m |
| Connection Method | Cable |
| Ingress Protection | NEMA 6P, IEC IP67 |
| Light Source | Infrared |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | SPST - Light-ON |
| Response Time | 16 ms |
| Sensing Distance | 400 mm |
| Sensing Distance | 15.748 in |
| Sensing Method | Background Suppression |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 237.00 | |
Description
General part information
Q40AW3 Series
Background Suppression Optical Sensor 15.748" (400mm) SPST - Light-ON
Documents
Technical documentation and resources
No documents available
