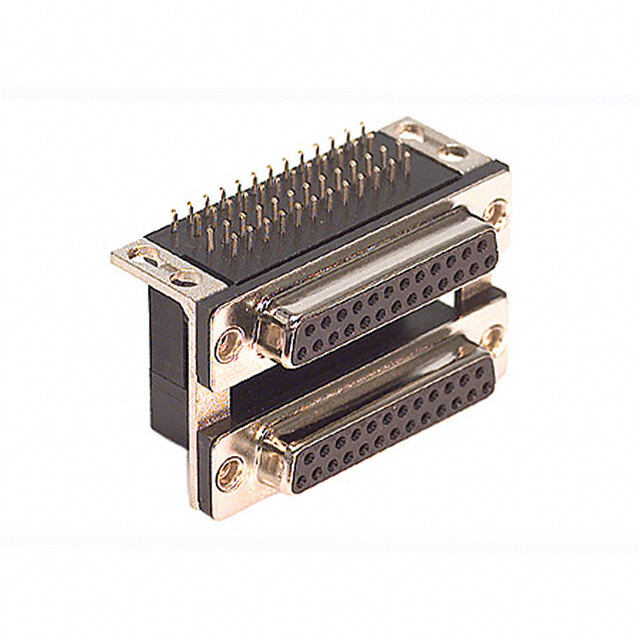

STACKED D SUB CONNECTOR, 178 SERIES, DB, RECEPTACLE, 25 CONTACTS, DB, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet +3

178-025-513R451

Active

MH Connectors

STACKED D SUB CONNECTOR, 178 SERIES, DB, RECEPTACLE, 25 CONTACTS, DB, RECEPTACLE

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	178-025-513R451

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder

178-025 Series

Part	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Material Flammability Rating	Contact Material	Contact Form	Termination	Contact Finish Thickness	Mounting Type	Features	Current Rating (Amps)	Contact Finish	Dielectric Material	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flange Feature	Connector Style	Color	Contact Type	Shell Material, Finish
MH Connectors 178-025-612-571	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyester Glass Filled	2	Male Pins Plug	105 ░C	-55 °C	25	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Black	Signal
MH Connectors 178-025-613R571	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Male Pins Plug	105 ░C	-55 °C	25	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-613R671	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Male Pins Plug	105 ░C	-55 °C	25	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-413R691	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C	25	Housing/Shell (4-40)	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-613R691	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Male Pins Plug	105 ░C	-55 °C	25	Housing/Shell (4-40)	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-513R451	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Receptacle Female Sockets	105 ░C	-55 °C	25	Housing/Shell (4-40)	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-513R671	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Receptacle Female Sockets	105 ░C	-55 °C	25	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-413R451	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C	25	Housing/Shell (4-40)	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-413R671	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C	25	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
MH Connectors 178-025-313R671	3 (DB B)	8.08 mm	0.318 "	UL94 V-0	Brass	Stamped	Solder	Flash	Panel Mount Right Angle Through Hole	Board Lock Grounding Indents Shielded	5 A	Gold	Polyamide (PA9T) Nylon 9T	2	Plug Male Pins Receptacle Female Sockets	105 ░C	-55 °C	25	Female Screwlock (4-40) Mating Side	D-Sub - Stacked	Black	Signal	Nickel Plated Steel
