MCP4632T-503E/UN

Active

Microchip Technology

DIGITAL POTENTIOMETER, VOLATILE, 50 KOHM, DUAL, 129 STEPS, ± 150 PPM/°C, 1.8 V TO 5.5 V, 10 PINS, PM… MORE

Find alt

Alpha

MCP4632T-503E/UN

Active

Microchip Technology

DIGITAL POTENTIOMETER, VOLATILE, 50 KOHM, DUAL, 129 STEPS, ± 150 PPM/°C, 1.8 V TO 5.5 V, 10 PINS, PM… MORE

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCP4632 Series

The MCP463X devices are dual channel, volatile, 7-bit (129 wiper steps) digital potentiometers with an I2C compatible interface. The MCP463X family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.

Technical Specifications

Parameters and characteristics for this part

Specification	MCP4632T-503E/UN

Configuration	Rheostat
Features	Selectable Address
Interface	I2C
Memory Type	Volatile
Mounting Type	Surface Mount
Number of Circuits	2
Number of Taps	129
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package Length	0.118 in

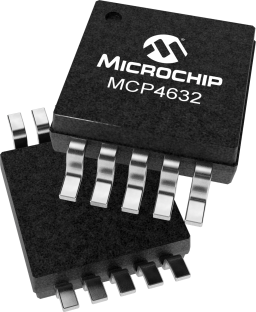

Package Name	10-TFSOP, 10-MSOP
Package Width	3 mm
Resistance	50 kOhm
Resistance - Wiper (Typ)	75 Ohm
Taper	Linear
Temperature Coefficient (Typ)	150 ppm/°C
Tolerance	20 %
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.8 V

MCP4632 Series

7-Bit Dual Digital POT with I2C™

Part	Package / Case	Taper	Temperature Coefficient (Typ)	Memory Type	Resistance	Package Length	Package Name	Package Width	Configuration	Tolerance	Number of Taps	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Number of Circuits	Mounting Type	Features	Resistance - Wiper (Typ)	Interface
Microchip Technology MCP4632T-104E/MF	10-VFDFN Exposed Pad	Linear	150 ppm/°C	Volatile	100 kOhm	3 mm	10-DFN	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632-503E/UN		Linear	150 ppm/°C	Volatile	50 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632T-104E/UN		Linear	150 ppm/°C	Volatile	100 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632T-502E/MF	10-VFDFN Exposed Pad	Linear	150 ppm/°C	Volatile	5 kOhm	3 mm	10-DFN	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632T-103E/UN		Linear	150 ppm/°C	Volatile	10 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632T-103E/MF	10-VFDFN Exposed Pad	Linear	150 ppm/°C	Volatile	10 kOhm	3 mm	10-DFN	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632-502E/UN		Linear	150 ppm/°C	Volatile	5 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632T-502E/UN		Linear	150 ppm/°C	Volatile	5 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632-104E/UN		Linear	150 ppm/°C	Volatile	100 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
Microchip Technology MCP4632T-503E/UN		Linear	150 ppm/°C	Volatile	50 kOhm	0.118 in	10-MSOP 10-TFSOP	3 mm	Rheostat	20 %	129	125 °C	-40 °C	5.5 V	1.8 V	2	Surface Mount	Selectable Address	75 Ohm	I2C
