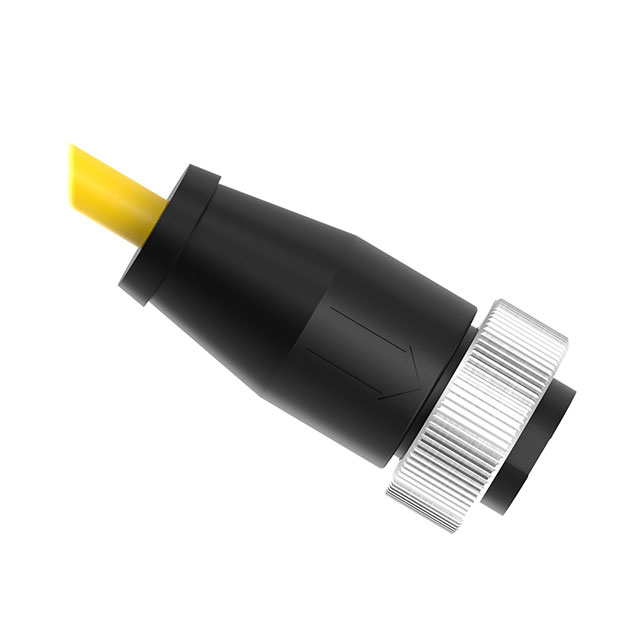

QDS-850C

Active

BANNER ENGINEERING

MINI 7/8-16 8-PIN FEMALE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QDS-850C

Active

BANNER ENGINEERING

MINI 7/8-16 8-PIN FEMALE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QDS-850C

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	0.875 in
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	15.24 m
Length	50 ft
Shielding	Unshielded
Usage	Industrial Environments

QDS Series

Part	Cable Type	Usage	Ingress Protection	1st Connector Number of Positions	1st Connector Type	Shielding	1st Connector Shell Size - Insert	Assembly Configuration	2nd Connector Type	Length [x]	Length [x]	1st Connector Gender	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Cable Material	Color	Length	Length
BANNER ENGINEERING QDS-315C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	3	Plug	Unshielded	0.875 in	Standard	Wire Leads	15 ft	4.57 m	Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow
BANNER ENGINEERING QDS-850C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	8 positions	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	15.24 m	50 ft
BANNER ENGINEERING QDS-825C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	8 positions	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	7.62 m	25 ft
BANNER ENGINEERING QDS-325C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	3	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	7.62 m	25 ft
BANNER ENGINEERING QDS-515C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	5	Plug	Unshielded	0.875 in	Standard	Wire Leads	15 ft	4.57 m	Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow
BANNER ENGINEERING QDS-550C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	5	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	15.24 m	50 ft
BANNER ENGINEERING QDS-350C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	3	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	15.24 m	50 ft
BANNER ENGINEERING QDS-525C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	5	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	7.62 m	25 ft
BANNER ENGINEERING QDS-875C	Round	Industrial Environments	IP67 - Dust Tight Waterproof	8 positions	Plug	Unshielded	0.875 in	Standard	Wire Leads			Female Sockets	Free Hanging (In-Line)	All	Polyvinyl Chloride (PVC)	Yellow	22.9 m	22.86 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 234.00
Newark	Each	1	$ 238.00

Description

General part information

QDS Series

Circular Cable Assembly Unshielded 50.0' (15.24m)

Documents

Technical documentation and resources
