PT080-8-2
ActivePomona Electronics

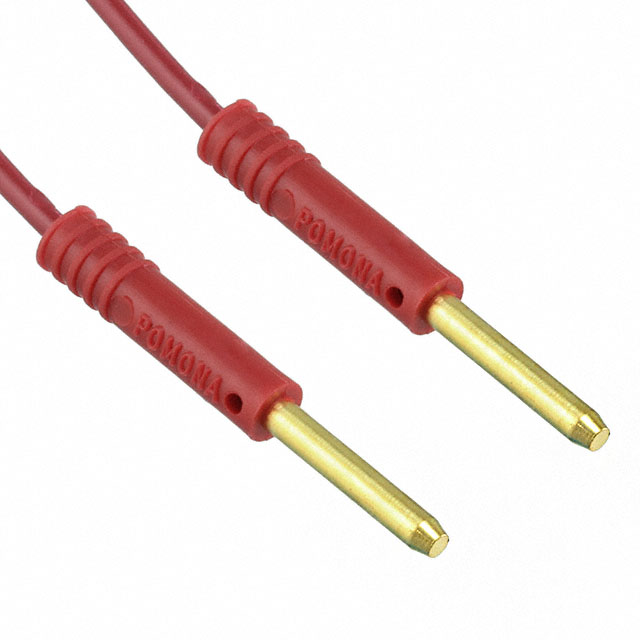

TEST LEAD TIP PLUG TO TIP PLG 8"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT080-8-2
ActivePomona Electronics
TEST LEAD TIP PLUG TO TIP PLG 8"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT080-8-2 |
|---|---|
| 1st Connector | Tip Plug |
| 2nd Connector | Tip Plug |
| Cable Length | 8 " |
| Cable Length | 203.2 mm |
| Configuration | Pin Tip to Pin Tip |
| Contents | Red |
| Contents [custom] | 1 |
| Current Rating (Amps) | 3 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 55 °C |
| Temperature Range | 131 °F |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.89 | |
| 25 | $ 7.64 | |||
Description
General part information
PT080 Series
8.0" (203.20mm) Tip Plug To Tip Plug Test Lead 1000VDC (1kV) 1 Lead, Red
