ZHTM-18/9-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HTSHRINK0.709"X98.4'BLACK METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZHTM-18/9-0-SP

Active

TE Connectivity Aerospace, Defense and Marine

HTSHRINK0.709"X98.4'BLACK METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 21.70
		5	$ 18.27
		10	$ 16.56
		25	$ 15.41
		50	$ 14.84
		100	$ 14.50

Description

General part information

ZHTM Series

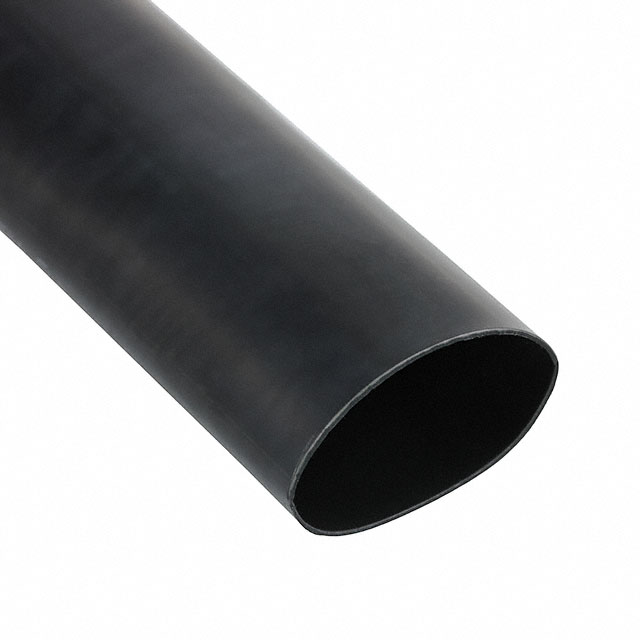

Heat Shrink Tubing, Flexible 0.709" (18.01mm) 2 to 1 Black Enter Number of Meters in Order Quantity

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZHTM-18/9-0-SP	ZHTM Series

Color	Black	Black
Features	Fluid Resistant, Flame Retardant	Fluid Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	8.99 mm	8.99 - 19.96 mm
Inner Diameter - Recovered [diameter]	0.354 in	0.354 - 0.786 in
Inner Diameter - Supplied	-	40.01 mm
Inner Diameter - Supplied [diameter]	18.01 mm	1.575 - 24 mm
Inner Diameter - Supplied [diameter]	0.709 in	0.197 - 0.945 "
Length	Enter Number of Meters in Order Quantity	Enter Number of Meters in Order Quantity
Length	-	1 - 5 m
Length	-	3.28 - 16.4 ft
Material	Polyolefin (PO), Irradiated, Halogen Free	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Recovered Wall Thickness	0.99 mm	0.043 - 1.3 in
Recovered Wall Thickness	0.039 in	0.039 - 0.051 in
Recovered Wall Thickness	-	1.09 mm
Recovered Wall Thickness	-	0.03 "
Shrink Temperature	80 °C	80 °C
Shrinkage Ratio	2 to 1	2 to 1
Spool Size	98.4 ft	98.4 - 196.8 ft
Spool Size	30 m	30 - 60 m
Type	Tubing, Flexible	Tubing, Flexible

ZHTM Series

HEAT SHRINK TUBING 1=1M

Part	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Spool Size	Spool Size	Shrink Temperature	Color	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Length	Shrinkage Ratio	Features	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness
TE Connectivity Aerospace, Defense and Marine ZHTM-24/12-0-SP	0.043 in	1.09 mm	0.472 in	12 mm	1 m	3.28 ft	24 mm	0.945 "	98.4 ft	30 m	80 °C	Black	Polyolefin (PO), Irradiated, Halogen Free	-30 ░C	105 ░C	Tubing, Flexible	Enter Number of Meters in Order Quantity	2 to 1	Flame Retardant, Fluid Resistant
TE Connectivity Aerospace, Defense and Marine ZHTM-40/20-0-SP	1.3 mm		0.786 in	19.96 mm	1 m, 5 m	3.28 ft, 16.4 ft	1.575 "				80 °C	Black	Polyolefin (PO), Irradiated, Halogen Free	-30 ░C	105 ░C	Tubing, Flexible		2 to 1	Flame Retardant, Fluid Resistant	0.051 in	40.01 mm
TE Connectivity Aerospace, Defense and Marine ZHTM-5/2.5-0-SP	0.76 mm				1 m	3.28 ft	5 mm	0.197 "	196.8 '	60 m	80 °C	Black	Polyolefin (PO), Irradiated, Halogen Free	-30 ░C	105 ░C	Tubing, Flexible	Enter Number of Meters in Order Quantity	2 to 1	Flame Retardant, Fluid Resistant			0.03 "
TE Connectivity Aerospace, Defense and Marine ZHTM-18/9-0-SP	0.99 mm		0.354 in	8.99 mm			18.01 mm	0.709 in	98.4 ft	30 m	80 °C	Black	Polyolefin (PO), Irradiated, Halogen Free	-30 ░C	105 ░C	Tubing, Flexible	Enter Number of Meters in Order Quantity	2 to 1	Flame Retardant, Fluid Resistant	0.039 in
