78F680J

Obsolete

Bourns Inc.

FIXED IND 68UH 137MA 2.9 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

78F680J

Obsolete

Bourns Inc.

FIXED IND 68UH 137MA 2.9 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	78F680J

Current Rating (Amps)	137 mA
DC Resistance (DCR) [Max]	2.9 Ohm
Frequency - Self Resonant	6.5 MHz
Inductance	68 µH
Inductance Frequency - Test	2.5 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Q @ Freq	2.5 MHz, 60
Shielding	Unshielded
Size / Dimension [diameter]	2.79 mm
Size / Dimension [diameter]	0.11 in
Size / Dimension [x]	0.28 in
Size / Dimension [x]	7.11 mm
Tolerance	5 %
Type	Wirewound, Drum Core

78F Series

Part	Shielding	Frequency - Self Resonant	Inductance Frequency - Test	Q @ Freq	Package / Case	Material - Core	Mounting Type	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Inductance	Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Bourns Inc. 78F330J-RC	Unshielded	10 MHz	2.5 MHz	2.5 MHz 50	Axial	Ferrite	Through Hole	0.255 A	0.28 in	2.79 mm	0.11 in	7.11 mm	1.5 Ohm	33 µH	Drum Core Wirewound	5 %	105 ░C	-55 °C
Bourns Inc. 78F4R7J	Unshielded	50 MHz	7.9 MHz	7.9 MHz 45	Axial	Ferrite	Through Hole	0.23 A	0.28 in	2.79 mm	0.11 in	7.11 mm		4.7 ÁH	Drum Core Wirewound	5 %	105 ░C	-55 °C	350 mOhm
Bourns Inc. 78F1R8K	Unshielded	125 MHz	7.9 MHz	7.9 MHz 50	Axial	Ferrite	Through Hole	455 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	250 mOhm	1.8 µH	Drum Core Wirewound	10 %	105 ░C	-55 °C
Bourns Inc. 78F102J-RC	Unshielded	1.2 MHz	790 kHz	60 790 kHz	Axial	Ferrite	Through Hole	60 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	31.4 Ohm	1 mH	Drum Core Wirewound	5 %	105 ░C	-55 °C
Bourns Inc. 78F151J-RC	Unshielded	4.75 MHz	790 kHz	60 790 kHz	Axial	Ferrite	Through Hole	150 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	5.4 Ohm	150 µH	Drum Core Wirewound	5 %	105 ░C	-55 °C
Bourns Inc. 78FR39K-RC	Unshielded	310 MHz	25 MHz	40	Axial	Ferrite	Through Hole	1 A	0.28 in	2.79 mm	0.11 in	7.11 mm		390 nH	Drum Core Wirewound	10 %	105 ░C	-55 °C	100 mOhm
Bourns Inc. 78F121J-RC	Unshielded	5.4 MHz	790 kHz	60 790 kHz	Axial	Ferrite	Through Hole	160 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	4.7 Ohm		Drum Core Wirewound	5 %	105 ░C	-55 °C
Bourns Inc. 78F150J	Unshielded	16 MHz	2.5 MHz	2.5 MHz 50	Axial	Ferrite	Through Hole	150 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	880 mOhm	15 µH	Drum Core Wirewound	5 %	105 ░C	-55 °C
Bourns Inc. 78F120J-RC	Unshielded	16 MHz	2.5 MHz	2.5 MHz 45	Axial	Ferrite	Through Hole	350 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	800 mOhm	12 µH	Drum Core Wirewound	5 %	105 ░C	-55 °C
Bourns Inc. 78F680J	Unshielded	6.5 MHz	2.5 MHz	2.5 MHz 60	Axial	Ferrite	Through Hole	137 mA	0.28 in	2.79 mm	0.11 in	7.11 mm	2.9 Ohm	68 µH	Drum Core Wirewound	5 %	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

78F Series

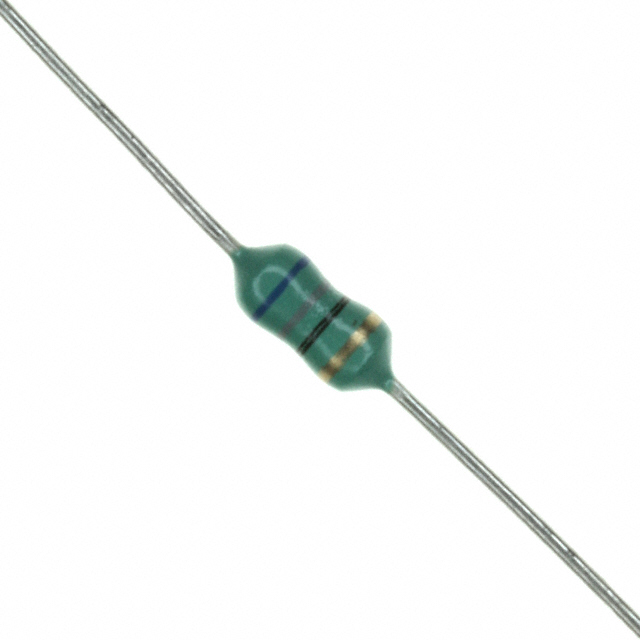

68 µH Unshielded Drum Core, Wirewound Inductor 137 mA 2.9Ohm Max Axial
