2909785

Active

Phoenix Contact

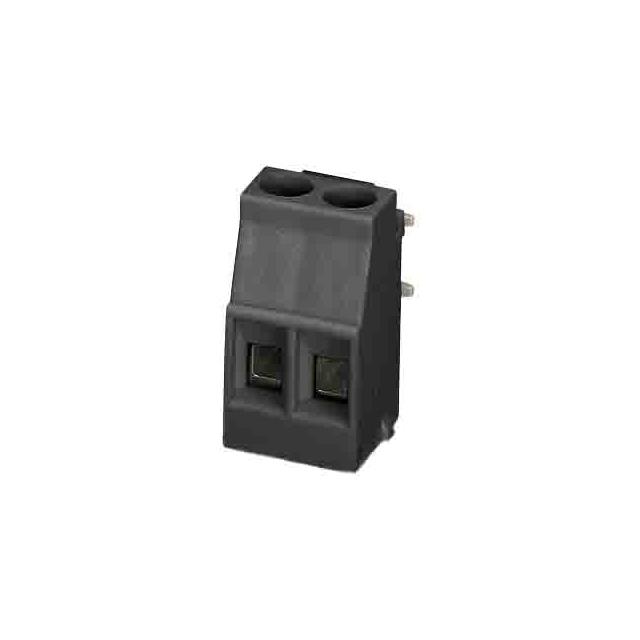

CONN PC TERMINAL BLOCK 5MM SOLDER THRU-HOLE 24A CARDBOARD

Search across all available documentation for this part.

Active

Phoenix Contact

CONN PC TERMINAL BLOCK 5MM SOLDER THRU-HOLE 24A CARDBOARD

Technical Specifications

Parameters and characteristics for this part

Fixed Terminal Blocks MKDSO 2,5/ 2-R BK VPE200

Part	Mounting Type	Pitch [x]	Pitch [x]	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Number of Levels	Color	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Termination	Current	Screw Thread	Positions Per Level	Voltage
Phoenix Contact 2909785	Through Hole	5 mm	0.197 in	30 AWG	12 AWG	Horizontal with Board	1	Black	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Screw - Rising Cage Clamp	20 A	M3	2	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.14
Digikey	Tape & Reel (TR)	200	$ 3.65
Sager	N/A	200	$ 3.63
		400	$ 3.50

General part information

Fixed Terminal Blocks MKDSO 2,5/ 2-R BK VPE200
