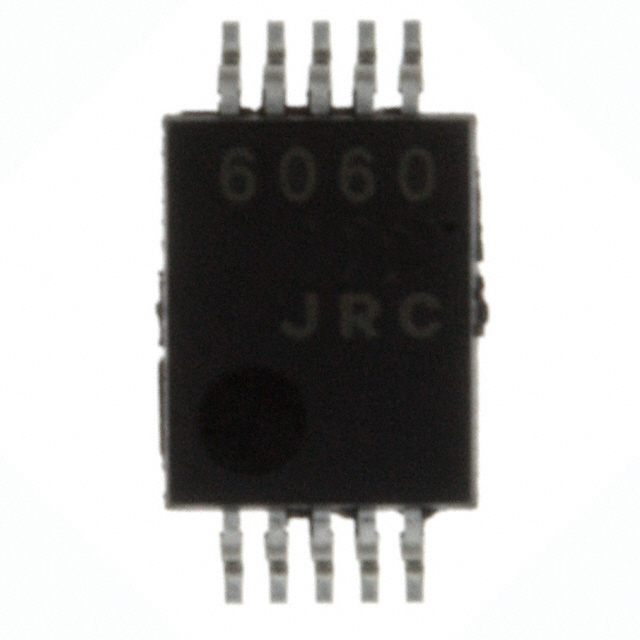

NJU6060V-TE1
ActiveNisshinbo Micro Devices Inc
IC LED DRIVER PS PWM 10MA 10SSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJU6060V-TE1
ActiveNisshinbo Micro Devices Inc
IC LED DRIVER PS PWM 10MA 10SSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJU6060V-TE1 |
|---|---|
| Current - Output / Channel | 10 mA |
| Dimming | PWM |
| Frequency | 12.48 kHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-LFSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 10-SSOP |
| Type | Power Switch |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.68 | |
| Digi-Reel® | 1 | $ 1.68 | ||
| Tape & Reel (TR) | 2000 | $ 0.85 | ||
| 4000 | $ 0.83 | |||
| 6000 | $ 0.82 | |||
| 10000 | $ 0.81 | |||
Description
General part information
NJU6060 Series
LED Driver IC 3 Output Power Switch PWM Dimming 10mA 10-SSOP
