172228-14

Active

Amphenol RF

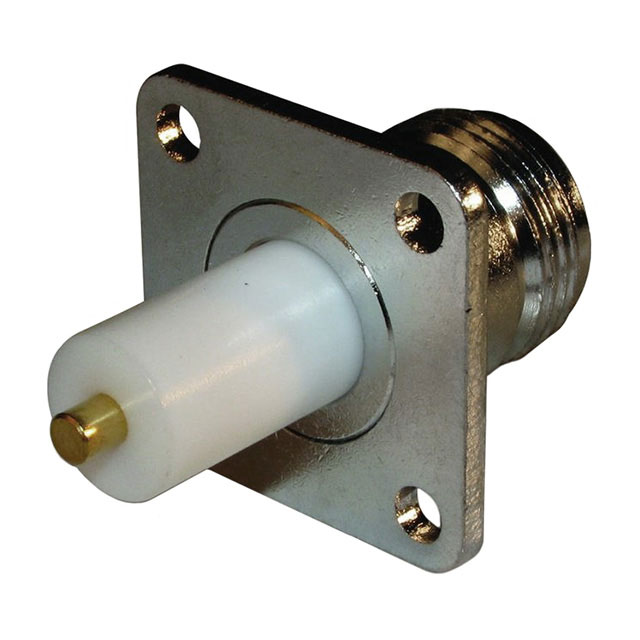

CONN N RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	172228-14

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1500 V

Part	Voltage Rating	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mating Cycles	Body Material	Connector Type	Insertion Loss	Dielectric Material	Mounting Feature	Body Finish	Contact Termination	Features	Impedance	Connector Style	Housing Color	Center Contact Material	Number of Ports	Frequency - Max [Max]
Amphenol RF 172228-14	1500 V	Gold	-65 ░C	165 °C	Solder	500	Brass	Female Socket Receptacle	0.15 dB	Polytetrafluoroethylene (PTFE)	Flange	White Bronze	Solder	Extended Insulation	50 Ohms	N Type	Silver	Beryllium Copper	1	11 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
