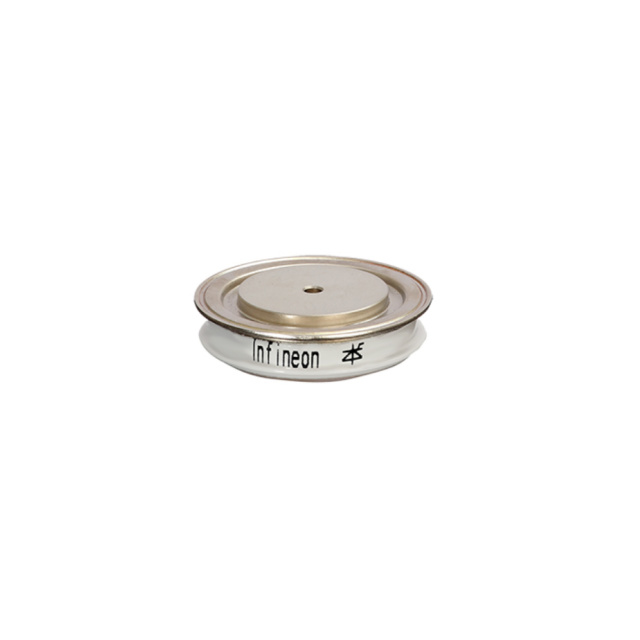

D126A45CXPSA1

Obsolete

Infineon Technologies

DIODE GEN PURP 4.5KV 200A

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DIODE GEN PURP 4.5KV 200A

Technical Specifications

Parameters and characteristics for this part

Specification	D126A45CXPSA1

Current - Average Rectified (Io)	200 A
Current - Reverse Leakage @ Vr	30 mA
Mounting Type	Stud Mount
Operating Temperature - Junction [Max]	160 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Stud, DO-8, DO-205AA
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	4500 V

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Mounting Type	Speed	Speed	Current - Reverse Leakage @ Vr	Technology	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]
Infineon Technologies D126A45CXPSA1	-40 °C	160 °C	Stud Mount	Standard Recovery >500ns	200 mA	30 mA	Standard	DO-205AA DO-8 Stud	200 A	4500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 4500 V 200A Stud Mount

Technical documentation and resources

No documents available
