Description

General part information

XCZU9 Series

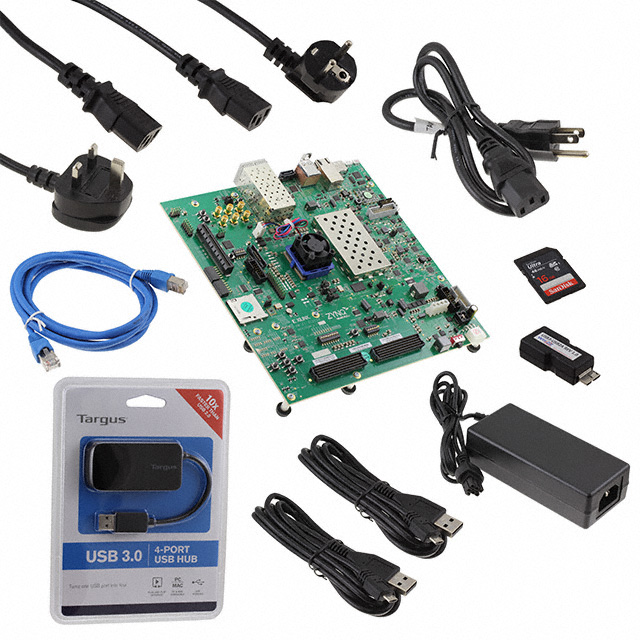

Zynq UltraScale+ MPSoC ZCU102 XCZU9EG Zynq® UltraScale+™ FPGA + MCU/MPU SoC Evaluation Board

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EK-U1-ZCU102-G	XCZU9 Series

Architecture	-	MCU, FPGA
Connectivity	-	UART/USART, EBI/EMI, USB OTG, MMC/SD/SDIO, I2C, SPI, CANbus, Ethernet
Contents	Power Supply, Cable(s), Accessories, Board(s)	Power Supply, Cable(s), Accessories, Board(s)
Core Processor	-	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, ARM Mali™-400 MP2
For Use With/Related Products	XCZU9EG	XCZU9EG
Interconnect System	FMC, Pmod	FMC, Pmod
Note	-	ED = Encryption Disabled
Number of I/O	-	204 - 328
Operating Temperature	-	100 °C
Operating Temperature	-	-40 - 0 C
Package / Case	-	FCBGA, 900-BBGA, 1156-BBGA
Peripherals	-	DMA, WDT
Platform	Zynq UltraScale+ MPSoC ZCU102	Zynq UltraScale+ MPSoC ZCU102, Zynq UltraScale+ MPSoC ZCU102 Encryption Disabled
Primary Attributes	-	Zynq®UltraScale+™ FPGA, 599K+
RAM Size	-	256 KB
Speed	-	1.3 - 600 MHz
Speed	-	1.2 - 600 GHz
Speed	-	1.2 GHz
Suggested Programming Environment	Vivado	Vivado
Supplier Device Package	-	900-FCBGA (31x31), 1156-FCBGA (35x35)
Type	FPGA + MCU/MPU SoC	FPGA + MCU/MPU SoC
Utilized IC / Part	XCZU9EG	XCZU9EG

XCZU9 Series

XILINX ZYNQ ULTRASCALE+ MPSOC ZC

Part	Platform	Type	Suggested Programming Environment	Utilized IC / Part	Contents	Interconnect System	For Use With/Related Products	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Number of I/O	Speed	Speed	Connectivity	Primary Attributes	Supplier Device Package	Architecture	Package / Case	RAM Size	Speed	Note
AMD EK-U1-ZCU102-G	Zynq UltraScale+ MPSoC ZCU102	FPGA + MCU/MPU SoC	Vivado	XCZU9EG	Accessories, Board(s), Cable(s), Power Supply	FMC, Pmod	XCZU9EG
AMD XCZU9CG-1FFVC900I								DMA, WDT	100 °C	-40 C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™	204	500 MHz	1.2 GHz	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	900-FCBGA (31x31)	MCU, FPGA	900-BBGA, FCBGA	256 KB
AMD XCZU9EG-1FFVC900I								DMA, WDT	100 °C	-40 C	ARM Mali™-400 MP2, Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	204	500 MHz	600 MHz	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	900-FCBGA (31x31)	MCU, FPGA	900-BBGA, FCBGA	256 KB	1.2 GHz
AMD EK-U1-ZCU102-G-ED	Zynq UltraScale+ MPSoC ZCU102 Encryption Disabled	FPGA + MCU/MPU SoC	Vivado	XCZU9EG	Accessories, Board(s), Cable(s), Power Supply	FMC, Pmod	XCZU9EG															ED = Encryption Disabled
AMD XCZU9EG-2FFVC900I								DMA, WDT	100 °C	-40 C	ARM Mali™-400 MP2, Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	204	1.3 GHz, 533 MHz, 600 MHz		CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	900-FCBGA (31x31)	MCU, FPGA	900-BBGA, FCBGA	256 KB
AMD XCZU9EG-L2FFVB1156E								DMA, WDT	100 °C	0 °C	ARM Mali™-400 MP2, Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	328	1.3 GHz, 533 MHz, 600 MHz		CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	1156-FCBGA (35x35)	MCU, FPGA	1156-BBGA, FCBGA	256 KB
AMD XCZU9EG-1FFVC900E								DMA, WDT	100 °C	0 °C	ARM Mali™-400 MP2, Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	204	500 MHz	600 MHz	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	900-FCBGA (31x31)	MCU, FPGA	900-BBGA, FCBGA	256 KB	1.2 GHz
AMD XCZU9EG-3FFVB1156E								DMA, WDT	100 °C	0 °C	Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	328	600 MHz	1.5 GHz	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	1156-FCBGA (35x35)	MCU, FPGA	1156-BBGA, FCBGA	256 KB
AMD XCZU9EG-L1FFVC900I								DMA, WDT	100 °C	-40 C	ARM Mali™-400 MP2, Dual ARM®Cortex™-R5 with CoreSight™, Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	204	500 MHz	600 MHz	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	900-FCBGA (31x31)	MCU, FPGA	900-BBGA, FCBGA	256 KB	1.2 GHz
AMD XCZU9CG-L1FFVC900I								DMA, WDT	100 °C	-40 C	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™	204	500 MHz	1.2 GHz	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG	599K+, Zynq®UltraScale+™ FPGA	900-FCBGA (31x31)	MCU, FPGA	900-BBGA, FCBGA	256 KB
