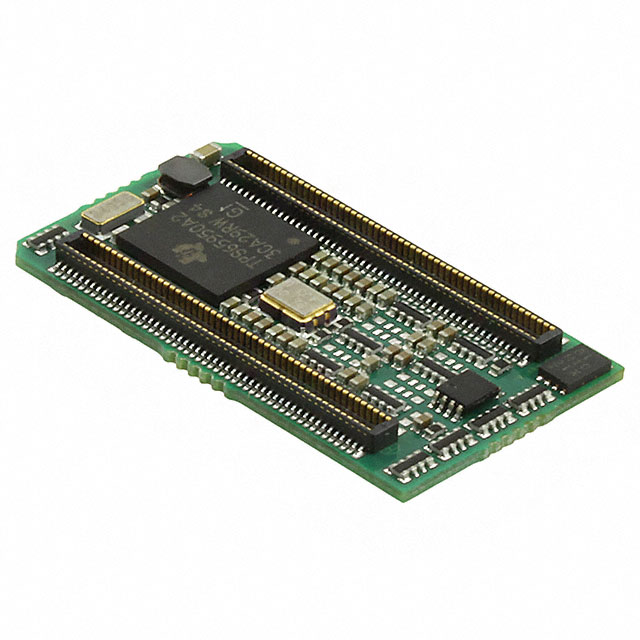

SOMOMAP3530-21-1780AGIR

Active

Beacon EmbeddedWorks

IC MOD CORTEX-A8 600MHZ 256MB

Search across all available documentation for this part.

Active

Beacon EmbeddedWorks

IC MOD CORTEX-A8 600MHZ 256MB

Technical Specifications

Parameters and characteristics commom to parts in this series

SOM OMAP3530

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Module/Board Type	RAM Size	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Flash Size	Core Processor	Co-Processor
Beacon EmbeddedWorks SOMOMAP3530-12-1782JFIR
Beacon EmbeddedWorks SOMOMAP3530-12-1782IFXR
Beacon EmbeddedWorks SOMOMAP3530-21-1780AGIR	1.06 in	0.59 in	27 mm	15 mm	MPU Core	256 MB	Board-to-Board (BTB) Socket - 200	85 °C	-40 °C	600 MHz	512 MB	ARM® Cortex®-A8, OMAP3530
Beacon EmbeddedWorks SOMOMAP3530-12-1783JFIR			1.23 in, 31.2 mm	3.01 in, 76.5 mm	DSP Core, MPU	256 MB		85 °C	-40 °C	600 MHz	16 MB, 512 MB	OMAP3530	TMS320C64x (DSP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OMAP35x Embedded Module ARM® Cortex®-A8, OMAP3530 600MHz 256MB 512MB
