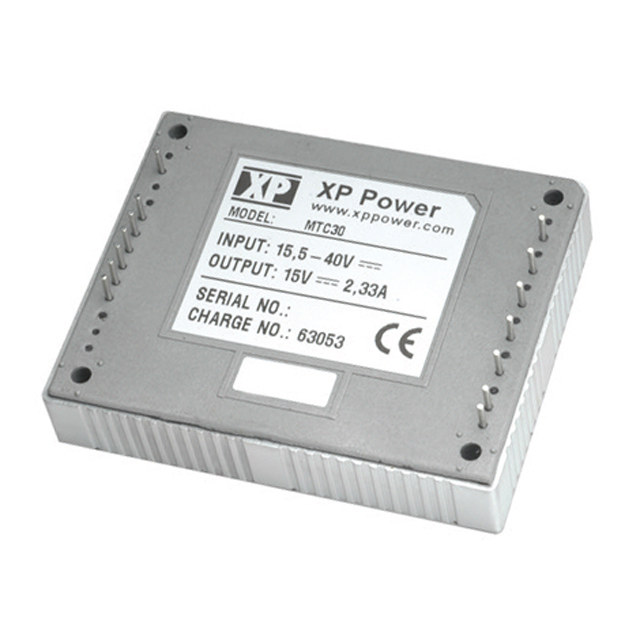

MTC3028S15
ActiveXP POWER
DC DC CONVERTER 15V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTC3028S15
ActiveXP POWER
DC DC CONVERTER 15V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTC3028S15 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 2.33 A |
| Efficiency | 81 % |
| Features | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 26-Module |
| Package / Case | 14 Leads |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [x] | 58 mm |
| Size / Dimension [y] | 1.81 in |
| Size / Dimension [y] | 46 mm |
| Size / Dimension [z] | 12.7 mm |
| Size / Dimension [z] | 0.5 in |
| Type | Isolated Module |
| Voltage - Input (Min) [Min] | 15.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 369.37 | |
Description
General part information
MTC3028 Series
Isolated Module DC DC Converter 1 Output 15V 2.33A 15.5V - 40V Input
