MF-NSHT016KX-2

Active

Bourns Inc.

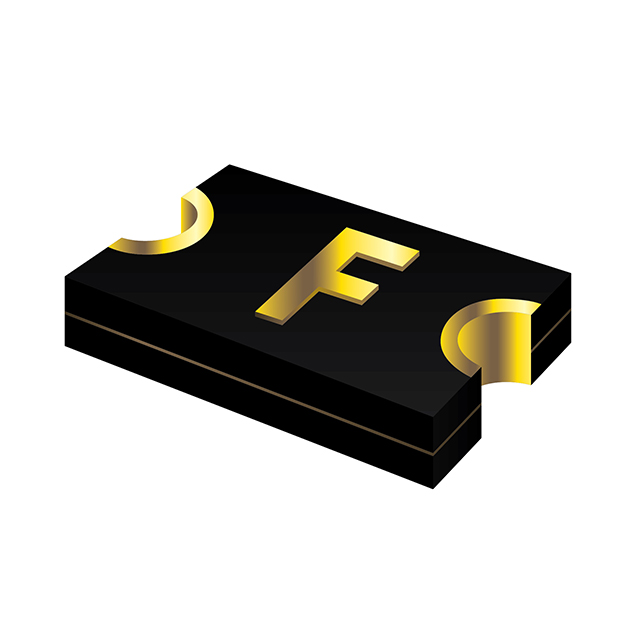

PTC RESET FUSE 30V 160MA 1206

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESET FUSE 30V 160MA 1206

Technical Specifications

Parameters and characteristics for this part

Specification	MF-NSHT016KX-2

Current - Hold (Ih) (Max)	160 mA
Current - Max [Max]	20 A
Current - Trip (It)	800 mA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	3216 Metric
Package / Case	1206
Package / Case	Concave
Qualification	AEC-Q200
Resistance - Initial (Ri) (Min) [Min]	700 mOhms
Resistance - Post Trip (R1) (Max) [Max]	6 Ohms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Thickness (Max) [Max]	0.033 in
Thickness (Max) [Max]	0.85 mm
Time to Trip	100 ms
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Package / Case	Package / Case	Package / Case	Type	Current - Hold (Ih) (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Current - Trip (It)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current - Max [Max]	Voltage - Max [Max]	Resistance - Initial (Ri) (Min) [Min]	Thickness (Max) [Max]	Thickness (Max) [Max]	Time to Trip	Grade	Resistance - Post Trip (R1) (Max) [Max]
Bourns Inc. MF-NSHT016KX-2	3216 Metric	1206	Concave	Polymeric	160 mA	125 °C	-40 °C	AEC-Q200	800 mA	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	20 A	30 V	700 mOhms	0.033 in	0.85 mm	100 ms	Automotive	6 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 160 mA Ih Surface Mount 1206 (3216 Metric), Concave
