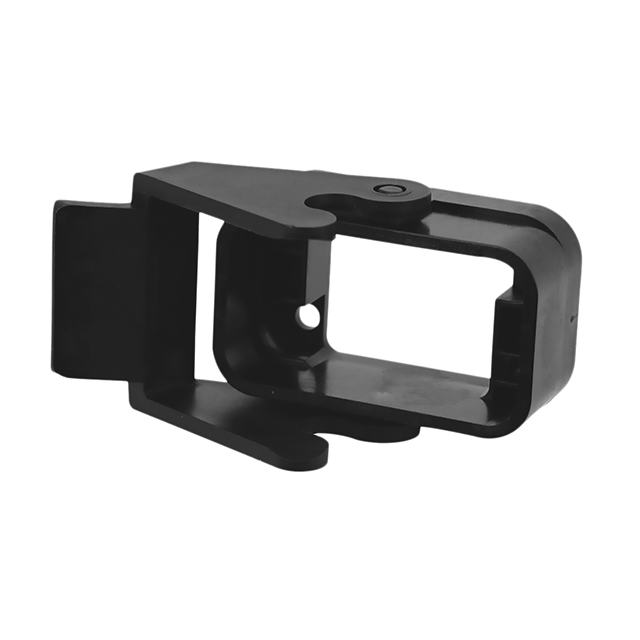

C146 10F008 001 12

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10F008 001 12

Connector Type	Base - Panel Mount
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	34.7 mm
Size / Dimension [x]	1.366 "
Size / Dimension [y]	1.807 "
Size / Dimension [y]	45.9 mm
Size / Dimension [z]	19.8 mm
Size / Dimension [z]	0.78 in
Style	Bottom Entry

Part	Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Lock Location	Ingress Protection	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Housing Color
Amphenol Tuchel Industrial C146 10F008 001 12	Bottom Entry	125 °C	-40 °C	Base - Panel Mount	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	1.807 "	45.9 mm	19.8 mm	34.7 mm	0.78 in	1.366 "	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 11.55

General part information

Base - Panel Mount Connector Bottom Entry IP65 - Dust Tight, Water Resistant
