5-1105101-1
ActiveTE Connectivity AMP Connectors

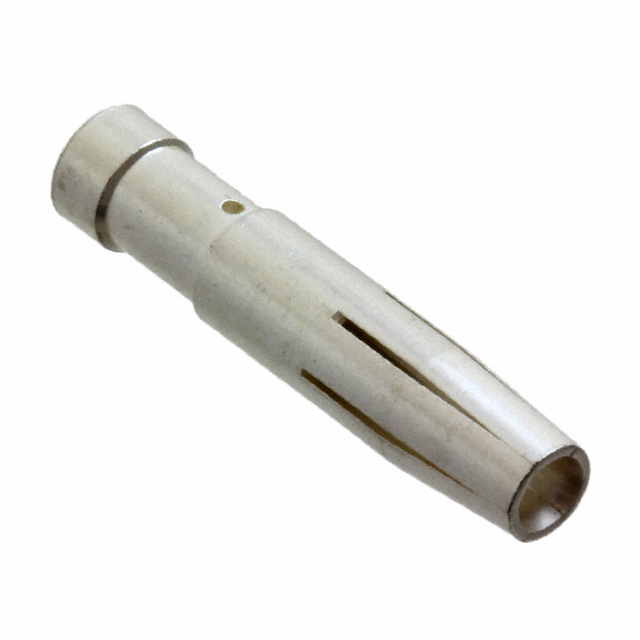

CONTACT H.D. CRIMP SOCKET 11AWG
Deep-Dive with AI
Search across all available documentation for this part.
5-1105101-1
ActiveTE Connectivity AMP Connectors
CONTACT H.D. CRIMP SOCKET 11AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-1105101-1 | 1105101 Series |
|---|---|---|
| Contact Finish | Silver | Gold, Silver |
| Contact Finish Thickness | 2 µm | 0.75 - 2 µm |
| Contact Finish Thickness | 78.7 µin | 29.5 - 78.7 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Machined | Machined |
| Wire Gauge | 11 AWG | 11 - 16 AWG |
| Wire Gauge | - | 17 AWG |
| Wire Gauge | - | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5000 | $ 0.63 | |
1105101 Series
CONTACT H.D. CRIMP SOCKET 11AWG
| Part | Pin or Socket | Type | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Termination | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-1105101-2 | Socket | Machined | 11 AWG | 0.75 µm | 29.5 µin | Gold | Crimp | ||
TE Connectivity AMP Connectors 2-1105101-1 | Socket | Machined | 2 µm | 78.7 µin | Silver | Crimp | 17 AWG | 18 AWG | |
TE Connectivity AMP Connectors 4-1105101-1 | Socket | Machined | 13.5 AWG | 2 µm | 78.7 µin | Silver | Crimp | ||
TE Connectivity AMP Connectors 3-1105101-1 | Socket | Machined | 16 AWG | 2 µm | 78.7 µin | Silver | Crimp | ||
TE Connectivity AMP Connectors 5-1105101-1 | Socket | Machined | 11 AWG | 2 µm | 78.7 µin | Silver | Crimp |
Description
General part information
1105101 Series
Contact Crimp Socket 11 AWG Silver
Documents
Technical documentation and resources
No documents available
