M4773 SL002

Active

ALPHA WIRE

MULTI-PAIR 10COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 10COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	M4773 SL002

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.293 in
Jacket (Insulation) Diameter [diameter]	7.44 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 10COND 22AWG

Part	Shield Coverage	Ratings	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Jacket Color	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Type	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Voltage	Features
ALPHA WIRE M4773 SL002	100 %	UL Style 2464	Multi-Pair	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Slate	Copper, Tinned	-20 C	80 C	22 AWG	0.293 in	7.44 mm	10	Foil	500 '	152.4 m	28	7	Aluminum	300 V	Drain Wire, Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.16

General part information

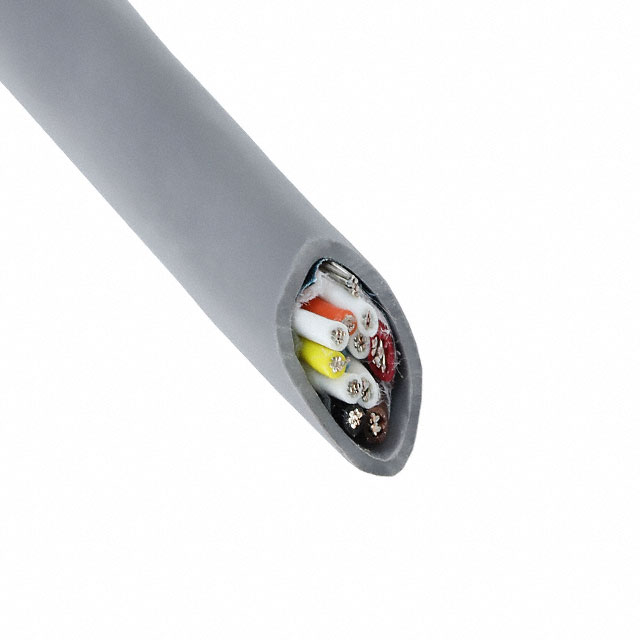

10 (5 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
