A7SXB-0910M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFM09B/AE09M/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A7SXB-0910M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AFM09B/AE09M/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7SXB-0910M | A7SXB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB25, DB15, DB37, DB50, DB9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.79 | |
| 10 | $ 9.77 | |||
| 25 | $ 9.06 | |||
| 50 | $ 8.57 | |||
| 100 | $ 8.10 | |||
| 250 | $ 7.52 | |||
| 500 | $ 7.11 | |||
| 1000 | $ 6.72 | |||
A7SXB Series
CABLE D-SUB - AFM25B/AE25G/X
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Length | Length | 2nd Connector | Type | 1st Connector | Shielding | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7SXB-2506G | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Individual Wire Leads | DB25 | Female Sockets, Receptacle | Unshielded | ||
TE Connectivity AMP Connectors A7SXB-1510M | 0.76 Ám | 30 Áin | Gold | 10 ft | 3.05 m | Individual Wire Leads | DB15 | Female Sockets, Receptacle | Unshielded | 15 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SXB-3706G | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Individual Wire Leads | DB37 | Female Sockets, Receptacle | Unshielded | 37 | |
TE Connectivity AMP Connectors A7SXB-5006G | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Individual Wire Leads | DB50 | Female Sockets, Receptacle | Unshielded | 50 | |
TE Connectivity AMP Connectors A7SXB-1510G | 0.76 Ám | 30 Áin | Gold | 10 ft | 3.05 m | Individual Wire Leads | DB15 | Female Sockets, Receptacle | Unshielded | 15 | |
TE Connectivity AMP Connectors A7SXB-0906M | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Individual Wire Leads | DB9 | Female Sockets, Receptacle | Unshielded | 9 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SXB-0910M | 0.76 Ám | 30 Áin | Gold | 10 ft | 3.05 m | Individual Wire Leads | DB9 | Female Sockets, Receptacle | Unshielded | 9 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SXB-0910G | 0.76 Ám | 30 Áin | Gold | 10 ft | 3.05 m | Individual Wire Leads | DB9 | Female Sockets, Receptacle | Unshielded | 9 | |
TE Connectivity AMP Connectors A7SXB-3706M | 0.76 Ám | 30 Áin | Gold | 6 ft | 1.83 m | Individual Wire Leads | DB37 | Female Sockets, Receptacle | Unshielded | 37 | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SXB-2510G | 0.76 Ám | 30 Áin | Gold | 10 ft | 3.05 m | Individual Wire Leads | DB25 | Female Sockets, Receptacle | Unshielded |
Description
General part information
A7SXB Series

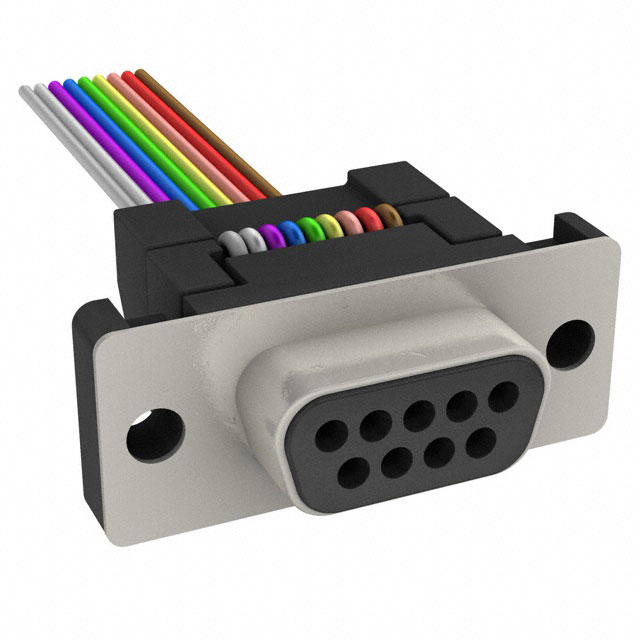

D-Sub Cable Assembly DB9 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
