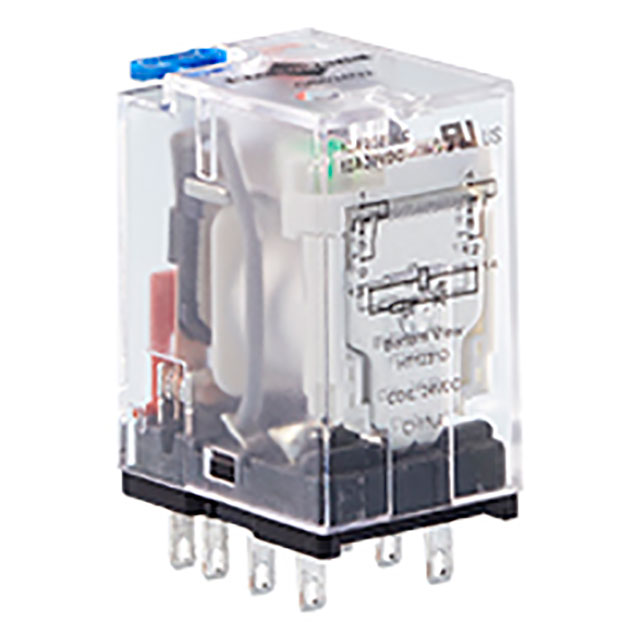

GB024D2

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 12A 24V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 12A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GB024D2	GB024 Series

Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Contact Form	DPDT (2 Form C)	4PDT (4 Form C), 3PDT (3 Form C), DPDT (2 Form C)
Contact Rating (Current)	12 A	6 - 12 A
Features	Test Button, Lighted Indicator	Test Button, Lighted Indicator
Mounting Type	Socketable	Socketable
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In	Plug In

RELAY GEN PURPOSE 4PDT 6A 24V

Part	Relay Type	Switching Voltage [Max]	Contact Form	Termination Style	Contact Rating (Current)	Coil Type	Mounting Type	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Features
Macromatic Industrial Controls GB024D4	General Purpose	30 VDC, 250 VAC	4PDT (4 Form C)	Plug In	6 A	Non Latching	Socketable	24 VDC	-40 °C	70 °C
Macromatic Industrial Controls GB024D3	General Purpose	30 VDC, 250 VAC	3PDT (3 Form C)	Plug In	10 A	Non Latching	Socketable	24 VDC	-40 °C	70 °C	Lighted Indicator, Test Button
Macromatic Industrial Controls GB024D2	General Purpose	30 VDC, 250 VAC	DPDT (2 Form C)	Plug In	12 A	Non Latching	Socketable	24 VDC	-40 °C	70 °C	Lighted Indicator, Test Button

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.74

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
