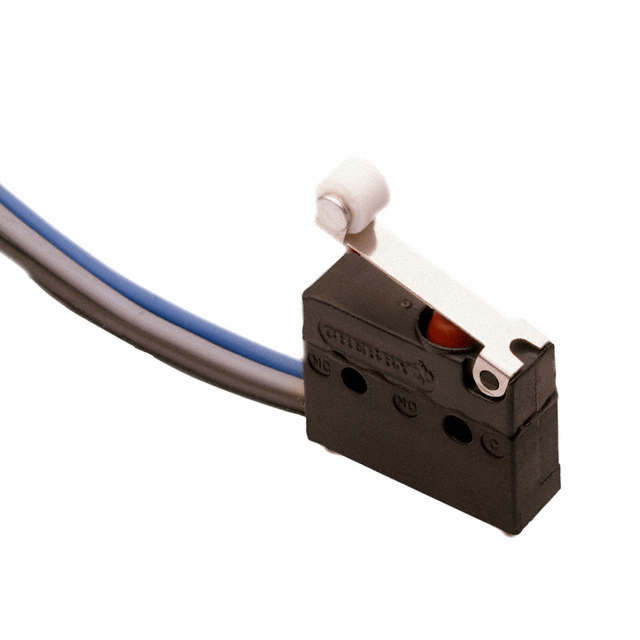

Specification	DC3CM5RB

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating	100 mA
Differential Travel (Linear)	0.02 in
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	92 gf
Operating Position (Length)	0.6 in
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Overtravel (Linear)	0.06 in
Pretravel (Length)	0.18 in
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V

DC3C Series

Part	Current Rating	Overtravel (Linear)	Operating Force	Termination Style	Actuator Type	Mounting Type	Electrical Life (Cycles)	Differential Travel (Linear)	Switch Function	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating - AC	Circuit	Operating Position (Length)	Mechanical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Pretravel (Length)
ZF Electronics DC3CM5RB	100 mA	0.06 in	92 gf	Wire Leads	Lever Roller	Chassis Mount	100000 Cycles	0.02 in	On-Mom	Dust Tight Waterproof	IP67	125 V	SPDT	0.6 in	1000000 Cycles	-40 °C	105 °C	0.18 in
ZF Electronics DC3C-A1RC	100 mA	0.06 in	82 gf	Solder Lug	Lever Roller	Chassis Mount	100000 Cycles	0.025 in	On-Mom	Dust Tight Waterproof	IP67	125 V	SPDT	0.638 in	1000000 Cycles	-40 °C	120 °C	0.197 in
ZF Electronics DC3C-A1LB	100 mA	0.06 in	82 gf	Solder Lug	Lever Straight	Chassis Mount	100000 Cycles	0.031 in	On-Mom	Dust Tight Waterproof	IP67	125 V	SPDT	0.42 in	1000000 Cycles	-40 °C	120 °C	0.178 in
ZF Electronics DC3C-A1AA	100 mA	0.025 in	204 gf	Solder Lug	Round (Pin Plunger)	Chassis Mount	100000 Cycles	0.004 in	On-Mom	Dust Tight Waterproof	IP67	125 V	SPDT	0.33 in	1000000 Cycles	-40 °C	120 °C	0.04 in
