Q-1T01T0003006i

Active

Amphenol Custom Cable

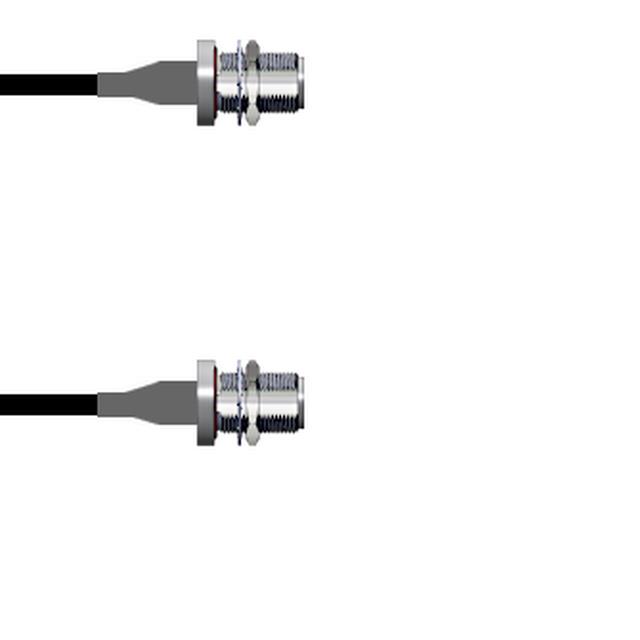

CBL ASSY NTYPE JACK TO JACK 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T01T0003006i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T01T0003006i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-1T01T0 Series

Part	1st Connector	2nd Connector	Cable Type	Color	1st Connector Mounting Type	1st Connector Mounting Feature	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	1st Contact Gender	Style	Length	Length	Features	2nd Contact Gender	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1T01T0005.75M	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	29.53 "	750 mm	Shielded	Female	50 Ohms
Amphenol Custom Cable Q-1T01T0005012i	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	12 "	304.8 mm	Shielded	Female	50 Ohms
Amphenol Custom Cable Q-1T01T00050.5M	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	19.69 "	50 cm	Shielded	Female	50 Ohms
Amphenol Custom Cable Q-1T01T0005072i	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	72 in	1.8 m	Shielded	Female	50 Ohms	6 ft
Amphenol Custom Cable Q-1T01T0003036i	N-Type Jack	N-Type Jack	RG-174	Black	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	36 in	91.44 cm	Shielded	Female	50 Ohms
Amphenol Custom Cable Q-1T01T0005084i	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	84 in	2.1 m	Shielded	Female	50 Ohms	7 ft
Amphenol Custom Cable Q-1T01T0005003i	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	3 in	76.2 mm	Shielded	Female	50 Ohms
Amphenol Custom Cable Q-1T01T0005018i	N-Type Jack	N-Type Jack	RG-316	Copper	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type			Shielded	Female	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T01T0003009i	N-Type Jack	N-Type Jack	RG-174	Black	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	9 "	228.6 mm	Shielded	Female	50 Ohms
Amphenol Custom Cable Q-1T01T0003006i	N-Type Jack	N-Type Jack	RG-174	Black	Panel Mount	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut	11 GHz	Panel Mount	Female	N-Type to N-Type	6 in	152.4 mm	Shielded	Female	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.31
		25	$ 71.90
		50	$ 70.50
		100	$ 69.10
		250	$ 67.70

Description

General part information

Q-1T01T0 Series

Cable Assembly Coaxial N-Type to N-Type RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
