6382-3SG-522

Active

Conxall/Switchcraft

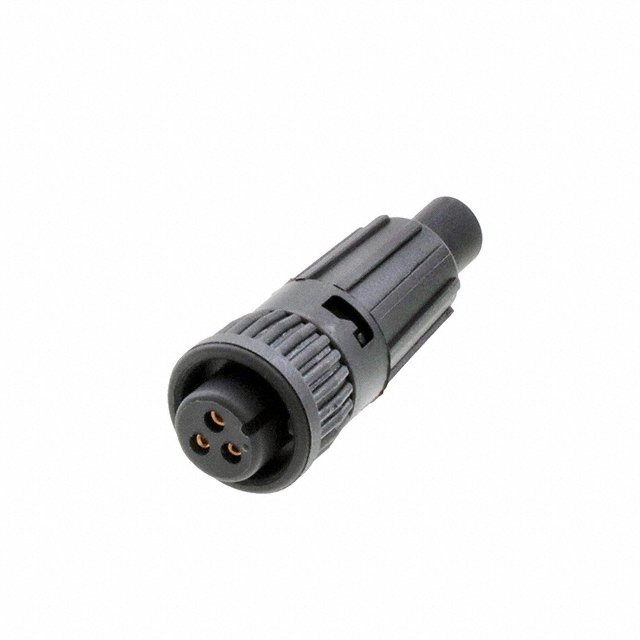

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6382-3SG-522

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6382-3SG-522	6382-3SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [Max] [diameter]	6.35 mm	6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.23 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.21 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.33 - 5.59 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6382-3SG Series

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Shielding	Fastening Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Connector Type	Primary Material	Voltage Rating	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Ingress Protection	Contact Finish - Mating	Applications	Orientation	Current Rating (Amps)	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6382-3SG-321	Unshielded	Bayonet Lock	5.33 mm	5.84 mm	0.21 in	0.23 in	Backshell	Female Sockets, Plug	Plastic	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Keyed	Varies by Wire Gauge	Brass
Conxall/Switchcraft 6382-3SG-522	Unshielded	Bayonet Lock	5.59 mm		0.22 in	0.25 in	Backshell	Female Sockets, Plug	Plastic	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Keyed	Varies by Wire Gauge	Brass	6.35 mm
Conxall/Switchcraft 6382-3SG-318	Unshielded	Bayonet Lock					Backshell	Female Sockets, Plug	Plastic	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Keyed	Varies by Wire Gauge	Brass		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 6382-3SG-513	Unshielded	Bayonet Lock					Backshell	Female Sockets, Plug	Plastic	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Keyed	Varies by Wire Gauge	Brass						0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6382-3SG-3DC	Unshielded	Bayonet Lock					Backshell	Female Sockets, Plug	Plastic	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	Nylon, Polyamide (PA)	Weathertight	Gold	Automotive, Communication Systems, Instrumentation	Keyed	Varies by Wire Gauge	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.67
		10	$ 11.23
		25	$ 10.79
		50	$ 10.36
		100	$ 9.79
		300	$ 8.92
		500	$ 8.35
		1000	$ 7.66

Description

General part information

6382-3SG Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
