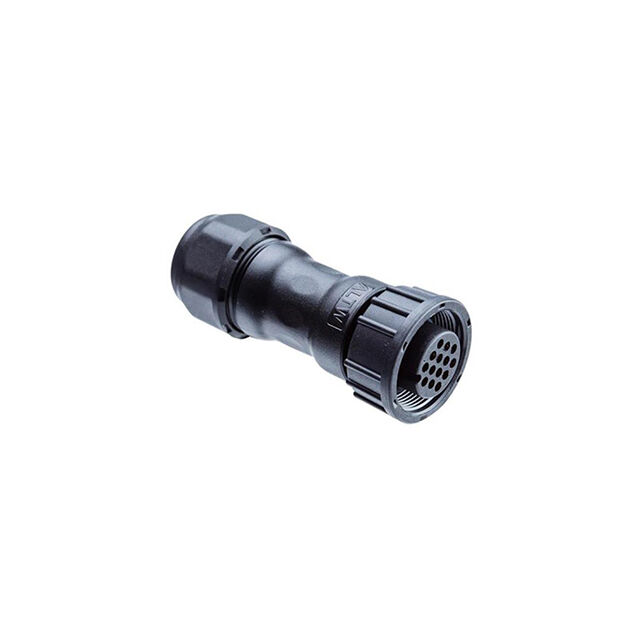

ACC-03BFFC-SL7MP0
ActiveAmphenol LTW
F, F, CRIMP, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
ACC-03BFFC-SL7MP0
ActiveAmphenol LTW
F, F, CRIMP, SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACC-03BFFC-SL7MP0 |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [Max] [custom] | 0.394 in |
| Cable Opening [Max] [custom] | 10 mm |
| Cable Opening [Min] [custom] | 8 mm |
| Cable Opening [Min] [custom] | 0.315 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 20 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shell Size - Insert | C |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 8.09 | |
Description
General part information
ACC-03BFFC Series
3 (Data) Position Circular Connector Plug, Female Sockets Crimp
