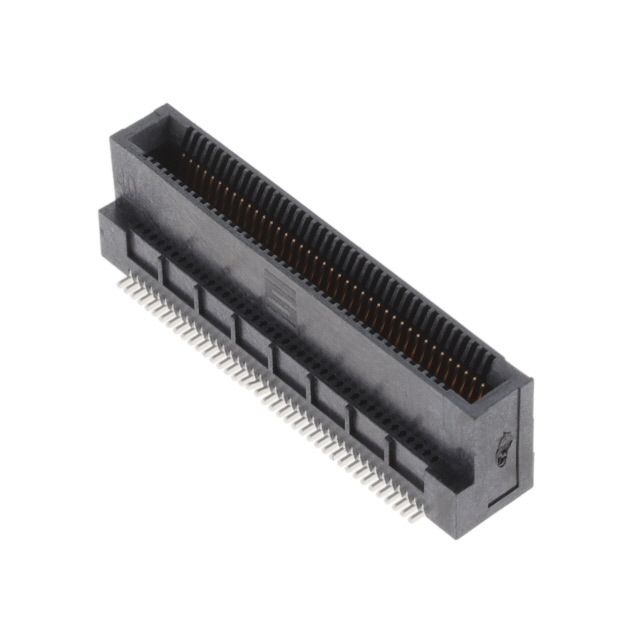

MEC6-140-02-L-DV-A-K-TR

Active

Samtec Inc.

CONN EDGE DUAL FMALE 80POS 0.025

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FMALE 80POS 0.025

Technical Specifications

Parameters and characteristics for this part

Specification	MEC6-140-02-L-DV-A-K-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Features	Pick and Place, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	80
Number of Positions/Bay/Row [custom]	40
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Read Out	Dual
Termination	Solder

Part	Pitch [x]	Pitch [x]	Number of Positions	Features	Mounting Type	Card Thickness	Card Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Contact Material	Contact Finish	Number of Positions/Bay/Row [custom]	Card Type	Material - Insulation	Number of Rows	Gender
Samtec Inc. MEC6-140-02-L-DV-A-K-TR	0.64 mm	0.025 in	80	Board Guide Pick and Place	Surface Mount	0.062 in	1.57 mm	-55 °C	125 °C	Solder	10 Áin	0.25 Ám	Dual	Black	Phosphor Bronze	Gold	40	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	2	Female
Samtec Inc. MEC6-140-02-L-D-RA1-TR	0.64 mm	0.025 in	80	Board Guide	Surface Mount Right Angle	0.062 in	1.57 mm	-55 °C	125 °C	Solder	10 Áin	0.25 Ám	Dual	Black	Phosphor Bronze	Gold	40	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	2	Female
Samtec Inc. MEC6-140-02-L-DV-K	0.64 mm	0.025 in	80	Pick and Place	Surface Mount	0.062 in	1.57 mm	-55 °C	125 °C	Solder	10 Áin	0.25 Ám	Dual	Black	Phosphor Bronze	Gold	40	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	2	Female
Samtec Inc. MEC6-140-02-S-D-RA1	0.64 mm	0.025 in	80	Board Guide	Surface Mount Right Angle	0.062 in	1.57 mm	-55 °C	125 °C	Solder	10 Áin	0.25 Ám	Dual	Black	Phosphor Bronze	Gold	40	Non Specified - Dual Edge	Liquid Crystal Polymer (LCP)	2	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

80 Position Female Connector Non Specified - Dual Edge Gold 0.025" (0.64mm) Black
