70ADJ-3-ML1

Active

Bourns Inc.

CONN SPRING MOD MALE 3POS SMD

Search across all available documentation for this part.

Active

Bourns Inc.

CONN SPRING MOD MALE 3POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Contacts [custom]	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material	Number of Contacts
Bourns Inc. 70ADJ-4-ML0G	4	4 mm	0.157 in	1	Compression Contact Male	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy
Bourns Inc. 70ADJ-3-FL1G		4 mm	0.157 in	1	Compression Contact Female	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy	3
Bourns Inc. 70ADJ-2-ML1G		4 mm	0.157 in	1	Compression Contact Male	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy
Bourns Inc. 70ADJ-3-ML1		4 mm	0.157 in	1	Compression Contact Male	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy	3
Bourns Inc. 70ADJ-6-FL0G	6	4 mm	0.157 in	1	Compression Contact Female	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy
Bourns Inc. 70ADJ-5-ML0G		4 mm	0.157 in	1	Compression Contact Male	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy	5
Bourns Inc. 70ADJ-2-ML1		4 mm	0.157 in	1	Compression Contact Male	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy
Bourns Inc. 70ADJ-4-FL0G	4	4 mm	0.157 in	1	Compression Contact Female	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy
Bourns Inc. 70ADJ-3-FL0G		4 mm	0.157 in	1	Compression Contact Female	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy	3
Bourns Inc. 70ADJ-3-FL0		4 mm	0.157 in	1	Compression Contact Female	Surface Mount	Gold	0.76 Ám	30 Áin	Copper Alloy	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

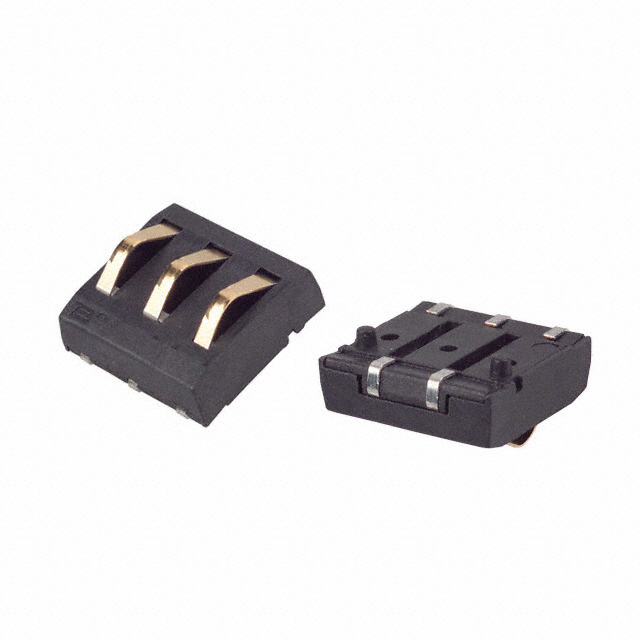

3 Position Spring Compression Contact, Male Connector Surface Mount

Technical documentation and resources
