Specification	D3SK-A0L

Actuator Type	Angled Toggle (Detector)
Circuit	SPST-NO
Current Rating	1 mA
Electrical Life (Cycles)	100000 Cycles
Features	Left Operating Lever
Mechanical Life (Cycles)	150000 Cycles
Mounting Type	Right Angle, Surface Mount
Operating Force	41 gf
Operating Position (Length)	0.185 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Switch Function	Off-Mom
Termination Style	Gull Wing
Voltage Rating - DC	5 V

D3SK Series

Detector Switches SPST-NO, Right W/Boss

Part	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Voltage Rating - DC	Circuit	Current Rating	Operating Position (Length)	Electrical Life (Cycles)	Actuator Type	Mechanical Life (Cycles)	Termination Style	Operating Force	Mounting Type	Features
Omron Electronics Inc-EMC Div D3SK-B0L-6	85 °C	-25 °C	On-Mom	5 V	SPST-NC	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Left Operating Lever

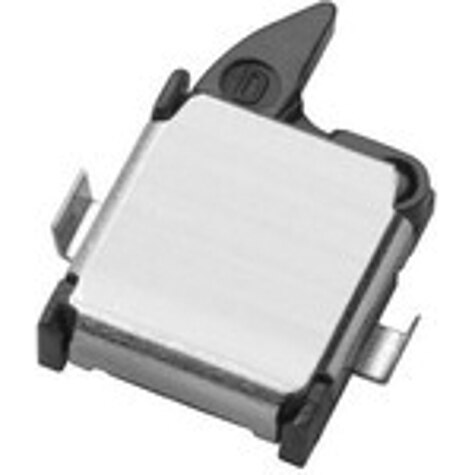

Omron Electronics Inc-EMC Div D3SK-A0L-6	85 °C	-25 °C	Off-Mom	5 V	SPST-NO	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Left Operating Lever
Omron Electronics Inc-EMC Div D3SK-B1R-6	85 °C	-25 °C	On-Mom	5 V	SPST-NC	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Board Guide Right Operating Lever
Omron Electronics Inc-EMC Div D3SK-A0R	85 °C	-25 °C	Off-Mom	5 V	SPST-NO	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Right Operating Lever
Omron Electronics Inc-EMC Div D3SK-B0R-6	85 °C	-25 °C	On-Mom	5 V	SPST-NC	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Right Operating Lever
Omron Electronics Inc-EMC Div D3SK-B1R	85 °C	-25 °C	On-Mom	5 V	SPST-NC	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Board Guide Right Operating Lever
Omron Electronics Inc-EMC Div D3SK-B0R	85 °C	-25 °C	On-Mom	5 V	SPST-NC	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Right Operating Lever

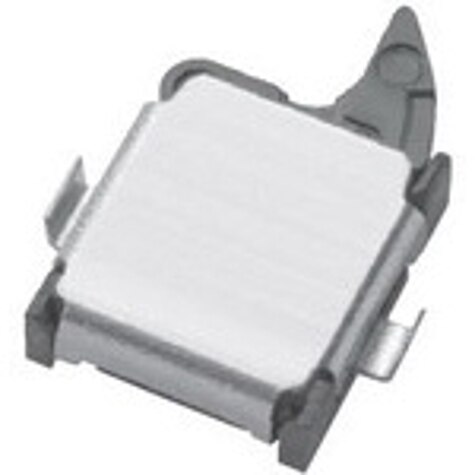

Omron Electronics Inc-EMC Div D3SK-A1R	85 °C	-25 °C	Off-Mom	5 V	SPST-NO	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Board Guide Right Operating Lever
Omron Electronics Inc-EMC Div D3SK-A0L	85 °C	-25 °C	Off-Mom	5 V	SPST-NO	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Left Operating Lever
Omron Electronics Inc-EMC Div D3SK-A0R-6	85 °C	-25 °C	Off-Mom	5 V	SPST-NO	1 mA	0.185 in	100000 Cycles	Angled Toggle (Detector)	150000 Cycles	Gull Wing	41 gf	Right Angle Surface Mount	Right Operating Lever
