MAAL-010705-TR3000
ActiveMACOM Technology Solutions
IC RF AMP GPS 500MHZ-1.6GHZ 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAAL-010705-TR3000
ActiveMACOM Technology Solutions
IC RF AMP GPS 500MHZ-1.6GHZ 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAAL-010705-TR3000 |
|---|---|
| Current - Supply | 60 mA |
| Frequency [Max] | 1.6 GHz |
| Frequency [Min] | 500 MHz |
| Gain | 21 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 0.5 dB |
| P1dB | 18.5 dBm |

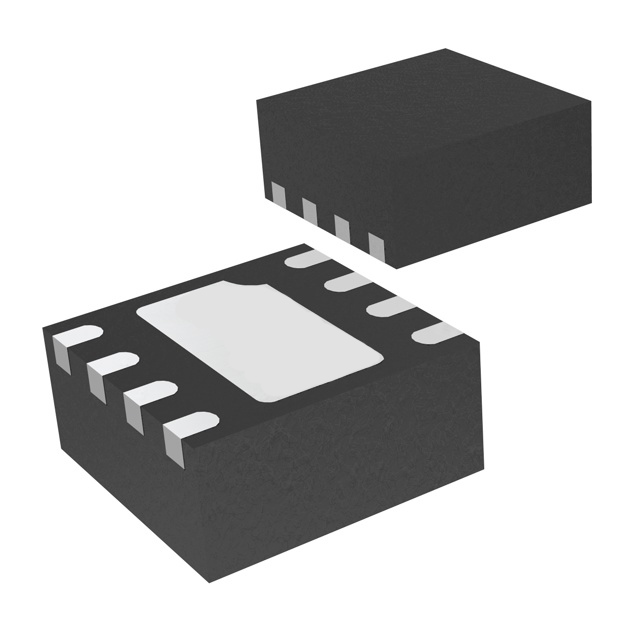

| Package / Case | 8-VFDFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 8-PDFN (2x2) |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.18 | |
| 10 | $ 4.75 | |||
| 25 | $ 4.32 | |||
| 100 | $ 3.89 | |||
| 250 | $ 3.80 | |||
| Digi-Reel® | 1 | $ 5.18 | ||
| 10 | $ 4.75 | |||
| 25 | $ 4.32 | |||
| 100 | $ 3.89 | |||
| 250 | $ 3.80 | |||
| Tape & Reel (TR) | 3000 | $ 3.80 | ||
Description
General part information
MAAL-010705 Series
RF Amplifier IC General Purpose 500MHz ~ 1.6GHz 8-PDFN (2x2)
