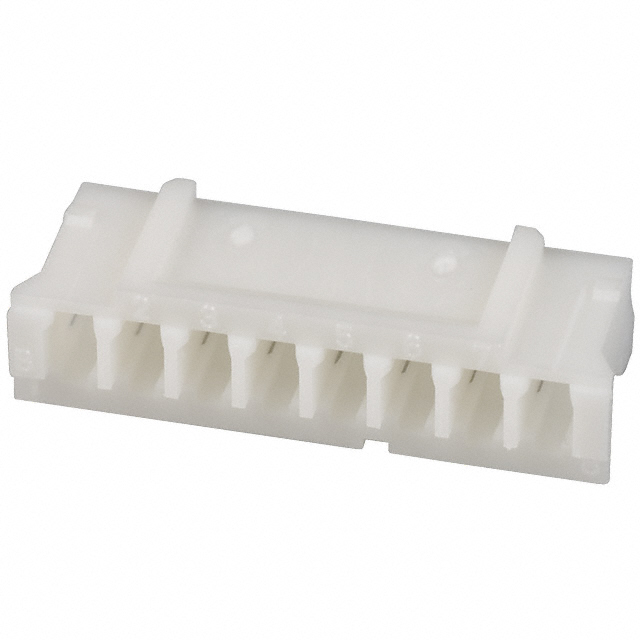

PHR-8

Active

JST Sales America Inc.

CONN RCPT HSG 8POS 2.00MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JST Prefix Suffix Chart +1

PHR-8

Active

JST Sales America Inc.

CONN RCPT HSG 8POS 2.00MM

Deep-Dive with AI

DocumentsDatasheet JST Prefix Suffix Chart +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHR-8

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Detent Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

PHR Series

Part	Number of Rows	Fastening Type	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Note	Insulation Material	Contact Termination	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Number of Positions
JST Sales America Inc. PHR-4-Y	1	Detent Lock	Receptacle	Yellow	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	4	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-13	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	13	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-8	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	8	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-16	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp		0.079 in	2 mm	Free Hanging (In-Line)	Female Socket	16
JST Sales America Inc. PHR-3	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp		0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-5-R	1	Detent Lock	Receptacle	Red	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp		0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-4-BK	1	Detent Lock	Receptacle	Black	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	4	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-2	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	2	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-14	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	14	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket
JST Sales America Inc. PHR-10	1	Detent Lock	Receptacle	Natural	-25 °C	85 °C	Contacts Not Included	Polyamide (PA66) Nylon 6/6	Crimp	10	0.079 in	2 mm	Free Hanging (In-Line)	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.15
		10	$ 0.12
		25	$ 0.11
		50	$ 0.10
		100	$ 0.09
		250	$ 0.08
		500	$ 0.07
		1000	$ 0.07
		2500	$ 0.06

Description

General part information

PHR Series

8 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

JST Prefix Suffix Chart
