SSR-90-R-R11-HJ102

Obsolete

Luminus Devices Inc.

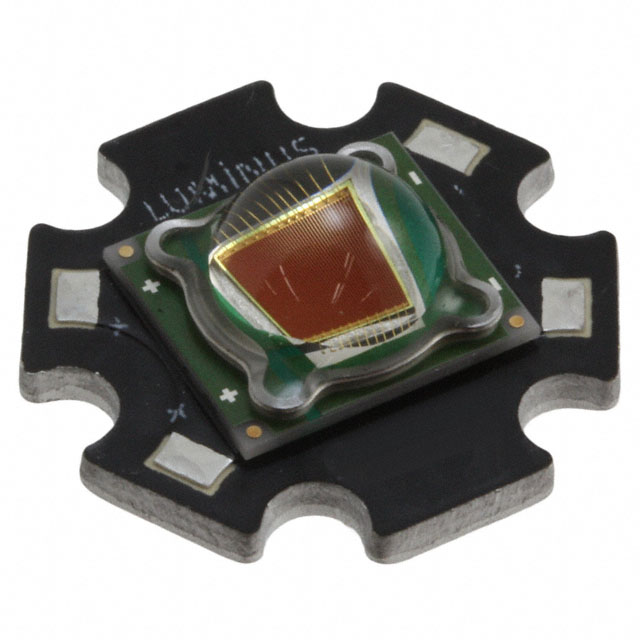

LED MOD SSR-90 RED STARBOARD

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED MOD SSR-90 RED STARBOARD

Technical Specifications

Parameters and characteristics for this part

Specification	SSR-90-R-R11-HJ102

Color	Red
Configuration	Starboard
Current - Max [Max]	18 A
Current - Test	3.15 A
Height [z]	7.1 mm
Lens Type	Domed
Light Emitting Surface (LES) [x]	3 mm
Light Emitting Surface (LES) [y]	3 mm
Lumens/Watt @ Current - Test	103 lm/W
Luminous Flux @ Current/Temperature	540 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	619 nm
Wavelength [Max]	623 nm
Wavelength [Min]	615 nm

Part	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Lumens/Watt @ Current - Test	Configuration	Light Emitting Surface (LES) [diameter]	Color	Viewing Angle	Current - Max [Max]	Type	Current - Test	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Height [z]	Luminous Flux @ Current/Temperature	CCT (K)	Wavelength [Min]	Wavelength	Wavelength [Max]	Size / Dimension [diameter]	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]
Luminus Devices Inc. SSR-90-W65S-R11-N3102	19.9 mm	19.9 mm	Domed	95 lm/W	Starboard	8 mm	Cool White	100 °	9 A	LED Module	3.15 A	3.25 V	70	7.1 mm	975 lm	6500 K
Luminus Devices Inc. SSR-90-R-R11-HJ102			Domed	103 lm/W	Starboard		Red		18 A	LED Module	3.15 A	2.1 V		7.1 mm	540 lm		615 nm	619 nm	623 nm	19.9 mm	3 mm	3 mm
Luminus Devices Inc. SSR-90-W57S-R11-N2200	19.9 mm	19.9 mm	Domed	90 lm/W	Starboard	8 mm	Cool White	100 °	9 A	LED Module	3.15 A	3.25 V	70	7.1 mm	925 lm	5700 K
Luminus Devices Inc. SSR-90-G-R11-JG200	19.9 mm	19.9 mm	Domed		Starboard	8 mm	Green	100 °	27 A	LED Module	3.15 A	3.4 V		7.1 mm				537 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module SSR-90 Red Starboard
