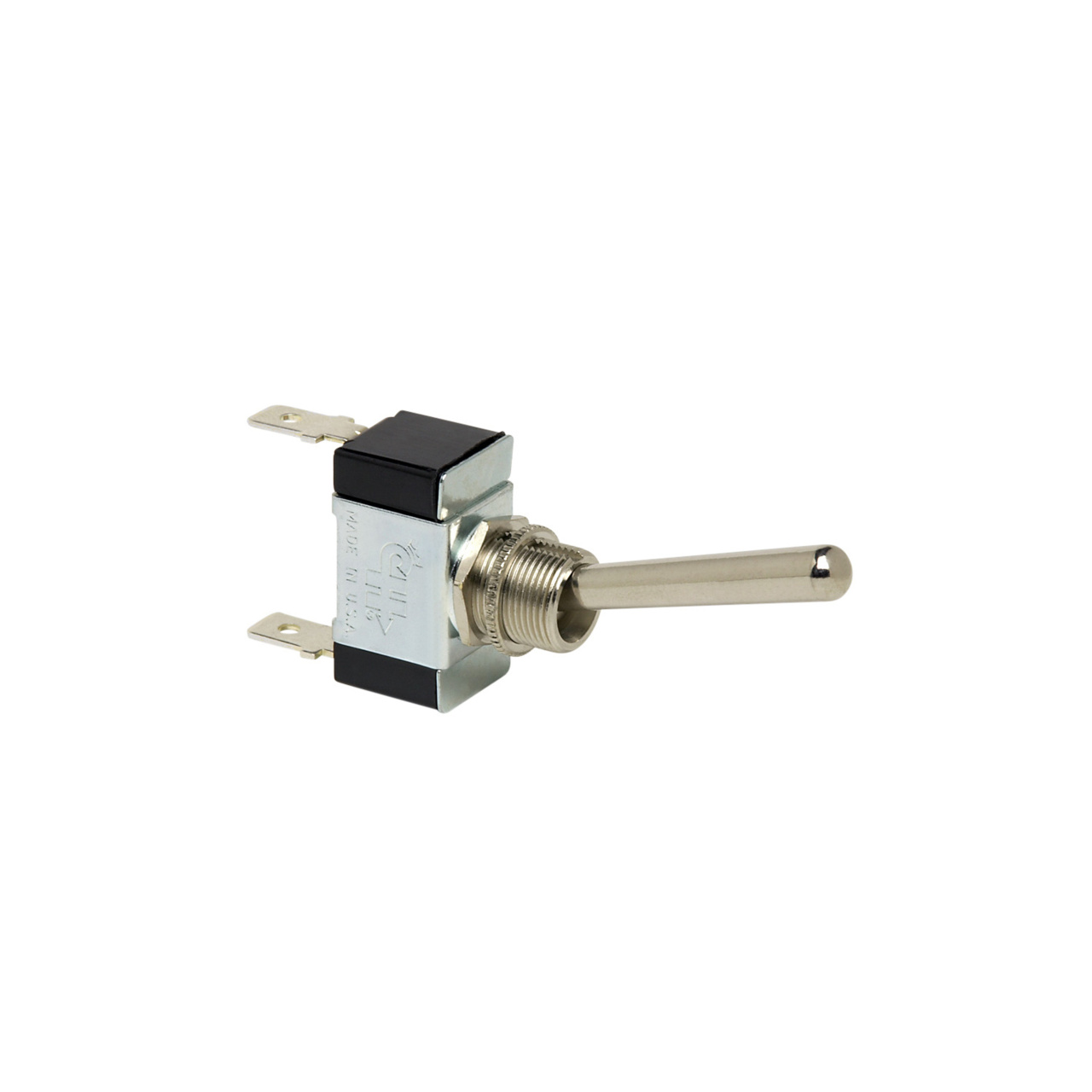

55052-01

Active

LITTELFUSE

SW TGL SPST MOM/ BULK ROHS COMPLIANT: YES

Find alt

Alpha

55052-01

Active

LITTELFUSE

SW TGL SPST MOM/ BULK ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

55052-01 Series

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.

Technical Specifications

Parameters and characteristics for this part

Specification	55052-01

Actuator Length	38.1 mm
Actuator Material	Nickel Plated, Brass
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST-NC
Current Rating	15 A
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Panel Cutout Diameter	11.9 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Mom
Termination Style	Quick Connect
Voltage Rating - DC	24 V

55052-01 Series

SW TGL SPST MOM

Part	Actuator Material	Voltage Rating - DC	Quick Connect Size (0.250")	Termination Style	Actuator Length	Mounting Type	Circuit	Panel Cutout Diameter	Panel Cutout Shape	Illumination	Switch Function	Actuator Type	Current Rating	Bushing Thread
LITTELFUSE 55052-01	Brass Nickel Plated	24 V	0.25 in	Quick Connect	38.1 mm	Panel Mount	SPST-NC	11.9 mm	Circular	Non-Illuminated	On-Mom	Standard Round	15 A	15/32-32
