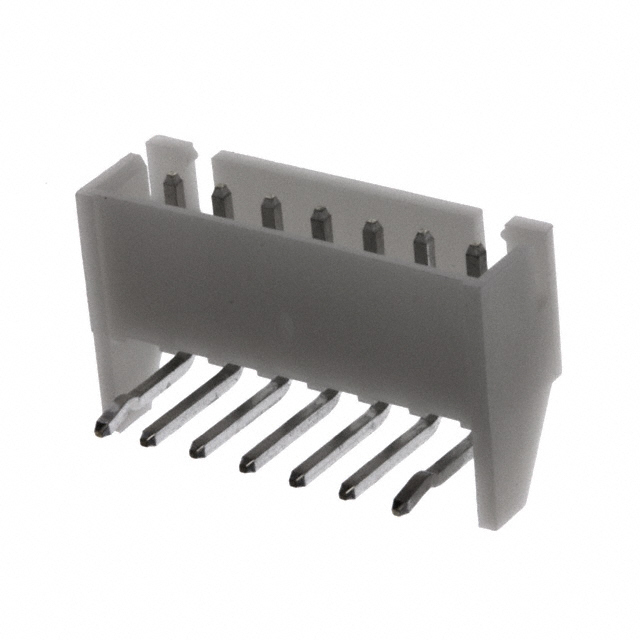

S7B-XH-A

Active

JST Sales America Inc.

CONN HEADER R/A 7POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 7POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S7B-XH-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VDC

Part	Material Flammability Rating	Shrouding	Insulation Color	Contact Shape	Connector Type	Number of Positions Loaded	Contact Finish - Post	Termination	Contact Type	Number of Positions	Mounting Type	Contact Material	Insulation Height	Insulation Height	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Material	Style	Current Rating (Amps)	Number of Rows	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]
JST Sales America Inc. S7B-XH-A	UL94 V-0	Shrouded - 4 Wall	Natural	Square	Header	All	Tin	Press-Fit Solder	Male Pin	7	Through Hole Right Angle	Brass	0.24 in	6.1 mm	Detent Lock	-25 °C	85 °C	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	3 A	1	250 VDC	0.134 in	3.4 mm
JST Sales America Inc. S7B-XH-A-1	UL94 V-0	Shrouded - 4 Wall	Natural	Square	Header	All	Tin	Press-Fit Solder	Male Pin	7	Through Hole Right Angle	Brass	0.24 in	6.1 mm	Detent Lock	-25 °C	85 °C	2.5 mm	0.098 in	Polyamide (PA66) Nylon 6/6	Board to Cable/Wire	3 A	1	250 VDC	0.134 in	3.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 7 position 0.098" (2.50mm)
