2035-2
ActiveDOUBLE MINIATURE BANANA PLUG W/ SHORTING BAR, 5A, RED
2035-2
ActiveDOUBLE MINIATURE BANANA PLUG W/ SHORTING BAR, 5A, RED
Description
General part information
2035 Series

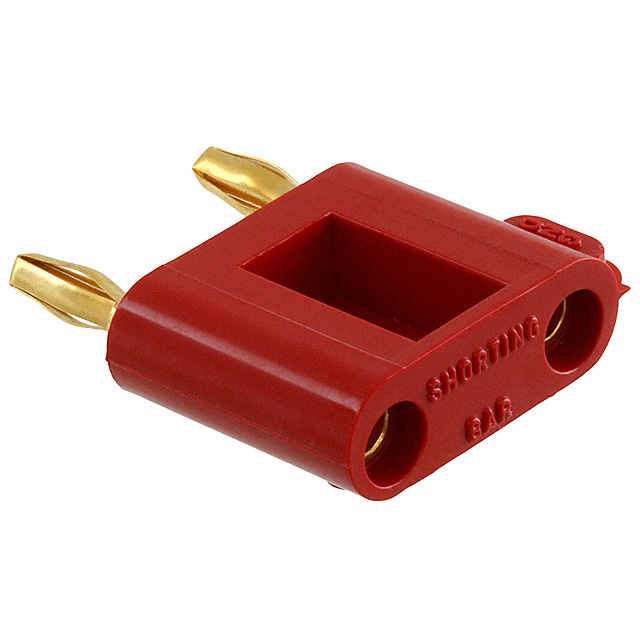

The 2035-2 is a red miniature double Banana Plug with shorting bar, cable mounting, ABS insulation, gold-plated beryllium copper spring and gold-plated brass banana jack (top side) and nickel-plated brass banana plug (bottom side) body. The plug to plug and jack to jack dimension is 0.500-inch (12.70mm) typical for double miniature banana plugs/jacks.
Technical Specifications
Parameters and characteristics for this part
| Specification | 2035-2 |
|---|---|
| Body Material | ABS, Acrylonitrile Butadiene Styrene |
| Color | Red |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Features | Shorting Bar |
| Gender | Male |
| Insulation | Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | 50 °C |
| Plug/Mating Plug Diameter | Miniature |
| Termination | Solderless |
| Type | Stackable, Double, Banana Plug |
