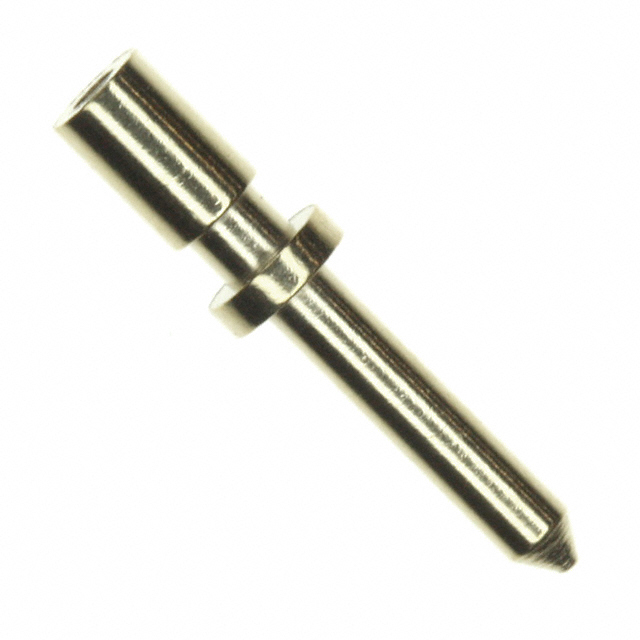

3139-0-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.049DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3139-0-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.049DIA GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3139-0-00-21-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Below Flange [x] | 0.156 in |
| Length - Below Flange [x] | 3.96 mm |
| Length - Overall [x] | 10.92 mm |
| Length - Overall [x] | 0.43 in |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 0.049 in |
| Pin Size - Above Flange [diameter] | 1.24 mm |
| Pin Size - Below Flange [diameter] | 0.071 in |
| Pin Size - Below Flange [diameter] | 1.8 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.63 | |
| 10 | $ 0.55 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.32 | |||
| 3000 | $ 0.29 | |||
Description
General part information
3139-0 Series
PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.049" (1.24mm) Dia
