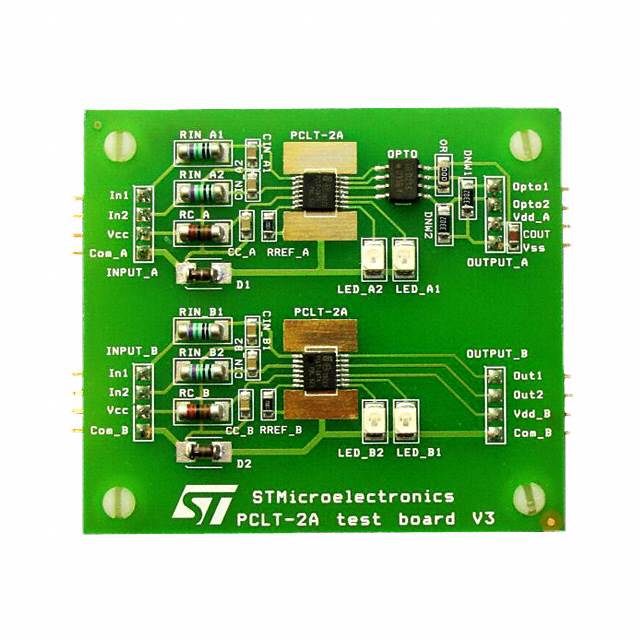

STEVAL-IFP004V1
ActiveEVAL BOARD FOR PCLT2
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-IFP004V1
ActiveEVAL BOARD FOR PCLT2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-IFP004V1 |
|---|---|
| Contents | Board(s) |
| Embedded | False |
| Function | Digital Signal Termination |
| Primary Attributes | Over Voltage, Over Current Protection, Dual Input |
| Supplied Contents | Board(s) |
| Type | Interface |
| Utilized IC / Part | PCLT2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 81.38 | |
Description
General part information
PCLT-2A Series
The PCLT-2A is a dual input current limiter device designed for 24 V DC automation applications.
This product is compatible with the type 2 (7.5 mA) or type 3 (3 mA) characteristic of the IEC 61131-2 standard. An internal resistance RREFallows the limiting current value to be adjusted from 3 to 7.5 mA.
Each input voltage clamping block protects the module input against electromagnetic interference such as those described in the IEC 61131-2 standard, IEC 61000-4-2 (ESD), 4-4 (transient burst), 4-5 (voltage surge) and 4-6 (conducted radio frequency interference) standards. The supply input is also designed with such a protection structure.
