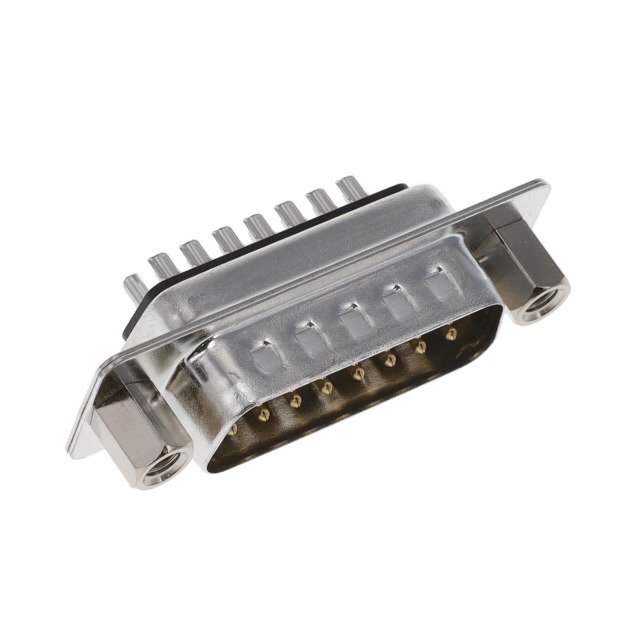

L717SDA15PVFM

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L717SDA15PVFM

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDA15PVFM

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Female Screwlock (M3), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L717SDA15 Series

Part	Connector Type	Connector Style	Features	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish	Flange Feature	Current Rating (Amps)	Voltage Rating	Contact Material	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Type	Shell Size, Connector Layout	Dielectric Material	Mounting Type	Contact Form	Number of Positions	Color	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L717SDA15PA4CH4R	Male Pins Plug	D-Sub	Board Lock Grounding Indents	2	-55 °C	125 °C	Solder	Gold	4-40 Board Side	3 A	250 VDC	Brass	8.08 mm	0.318 "	Flash	Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0
Amphenol ICC (Commercial Products) L717SDA15PVFC309	Male Pins Plug	D-Sub	Grounding Indents	2	-55 °C	105 ░C		Gold	Female Screwlock (4-40) Mating Side	3 A	250 VDC	Brass				Signal	2	Thermoplastic Glass Filled	Free Hanging (In-Line)	Stamped	15	Black	UL94 V-0	0.76 Ám	30 Áin	20 AWG
Amphenol ICC (Commercial Products) L717SDA15PVFM	Male Pins Plug	D-Sub	Grounding Indents	2	-55 °C	105 ░C		Gold	Female Screwlock (M3) Mating Side	3 A	250 VDC	Brass			Flash	Signal	2	Thermoplastic Glass Filled	Free Hanging (In-Line)	Stamped	15	Black	UL94 V-0			20 AWG
Amphenol ICC (Commercial Products) L717SDA15PA4CH3F	Male Pins Plug	D-Sub	Board Lock Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Female Screwlock (M3) Mating Side	3 A	250 VDC	Brass	8.08 mm	0.318 "	Flash	Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0
Amphenol ICC (Commercial Products) L717SDA15P1ACO4F	Male Pins Plug	D-Sub	Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Female Screwlock (4-40) Mating Side	3 A	250 VDC	Brass			Flash	Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0
Amphenol ICC (Commercial Products) L717SDA15P1ACH4FC309	Male Pins Plug	D-Sub	Board Lock Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Female Screwlock (4-40) Mating Side	3 A	250 VDC	Brass	10.3 mm	0.406 in		Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDA15PA4CH3FC309	Male Pins Plug	D-Sub	Board Lock Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Female Screwlock (M3) Mating Side	3 A	250 VDC	Brass	8.08 mm	0.318 "		Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L717SDA15P1ACH4F	Male Pins Plug	D-Sub	Board Lock Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Female Screwlock (4-40) Mating Side	3 A	250 VDC	Brass	10.3 mm	0.406 in	Flash	Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0
Amphenol ICC (Commercial Products) L717SDA15P1ACH3R	Male Pins Plug	D-Sub	Board Lock Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Board Side (M3)	3 A	250 VDC	Brass	10.3 mm	0.406 in	Flash	Signal	2	Thermoplastic Glass Filled	Through Hole Right Angle	Stamped	15	Black	UL94 V-0
Amphenol ICC (Commercial Products) L717SDA15POL2G	Male Pins Plug	D-Sub	Grounding Indents	2	-55 °C	125 °C	Solder	Gold	Housing/Shell (Unthreaded)	3 A	250 VDC	Brass			Flash	Signal	2	Thermoplastic Glass Filled	Through Hole	Stamped	15	Black	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.12
		10	$ 0.97
		25	$ 0.93
		70	$ 0.91
		140	$ 0.87
		280	$ 0.79
		490	$ 0.73

Description

General part information

L717SDA15 Series

15 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
