66101-500

Active

Laird Thermal Systems, Inc.

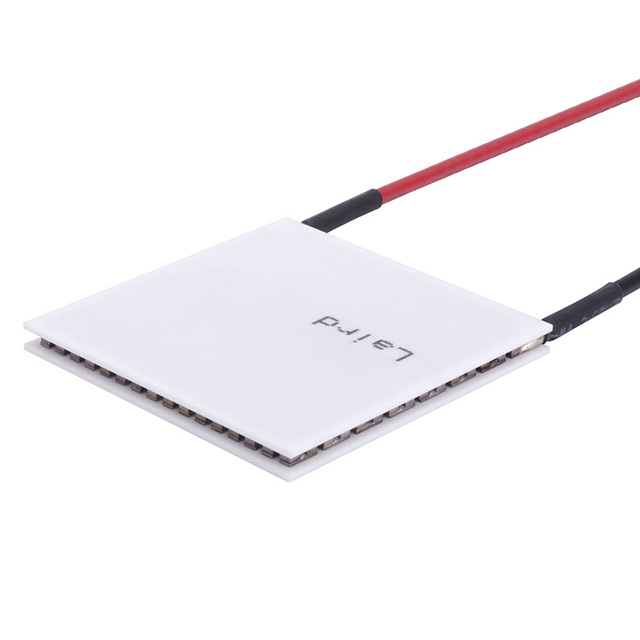

PELTIER CP14,127,045,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP14,127,045,L1,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	66101-500

Current - Max [Max]	8.5 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.33 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	72 W
Resistance	1.55 Ohms
Size / Dimension [x]	39.88 mm
Size / Dimension [y]	39.88 mm
Voltage - Max [Max]	14.5 V

Part	Height [z]	Features	Qmax @ Th	Voltage - Max [Max]	Resistance	Operating Temperature	Delta Tmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Number of Stages
Laird Thermal Systems, Inc. 66101-500	3.33 mm	Lead Wires Sealed - Silicone RTV	72 W	14.5 V	1.55 Ohms	80 °C	67 °C	8.5 A	39.88 mm	39.88 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 72.0W @ 25°C 8.5 A 80°C
