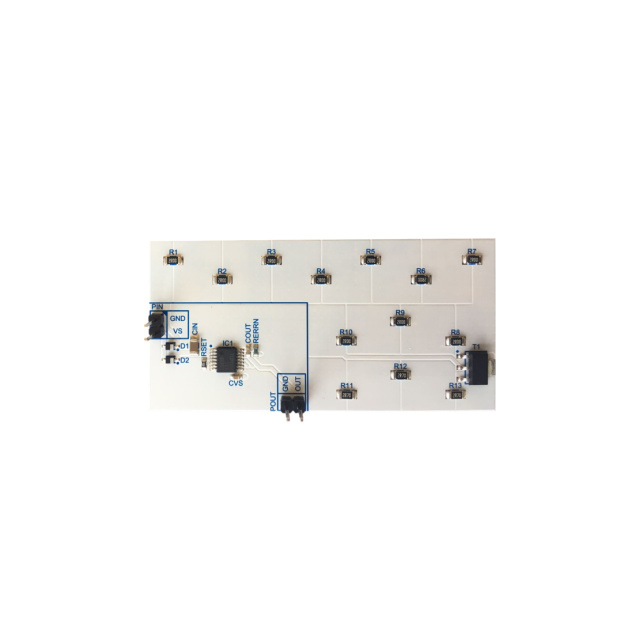

BPLUSOFFLOADBOARDTOBO1
ActiveInfineon Technologies
DEMO BOARD, LINEAR, 7V, 0.36A/LED DRIVER ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPLUSOFFLOADBOARDTOBO1
ActiveInfineon Technologies
DEMO BOARD, LINEAR, 7V, 0.36A/LED DRIVER ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BPLUSOFFLOADBOARDTOBO1 |
|---|---|
| Current - Output / Channel | 360 mA |
| Features | Dimmable |
| Outputs and Type | 1 Non-Isolated Output |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLD1114-1EP |
| Voltage - Input [Max] | 16 V |
| Voltage - Input [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BPLUSOFFLOAD Series
TLD1114-1EP - 1 Non-Isolated Output pval(5) LED Driver Evaluation Board
