Q-1X0720008048i

Active

Amphenol Custom Cable

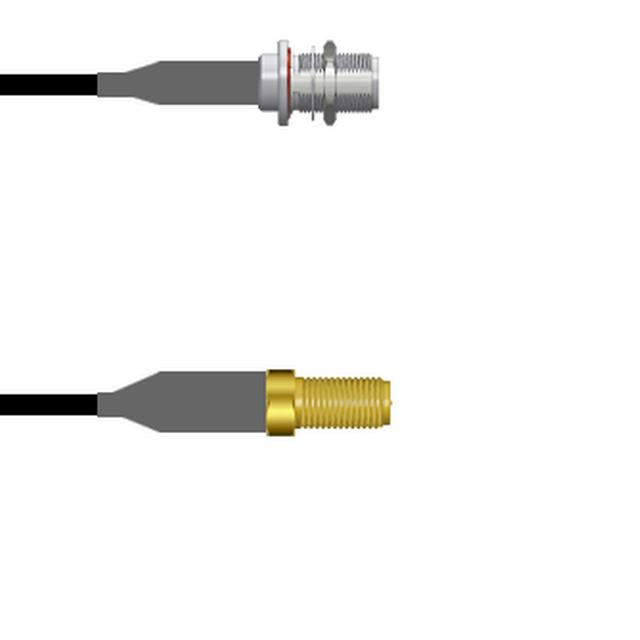

CBL ASSY RPSMA-NTYPE JCK-JCK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1X0720008048i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE JCK-JCK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1X0720008048i

1st Connector	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-1X0720 Series

Part	Cable Type	1st Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	2nd Contact Gender	2nd Connector	2nd Connector Mounting Feature	Color	Overall Impedance	Length	Length	Length	Style	1st Connector	Features	2nd Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1X0720008072i	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms	6 ft	72 in	1.8 m	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008002M	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms	6.6 ft	78.7 in	2 m	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008108i	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms	9 ft	108 in	2.7 m	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008048i	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms	4 ft	48 in	1200 mm	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008.25M	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms				RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount	9.843 "	250 mm
Amphenol Custom Cable Q-1X0720008060i	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms	5 ft	5 '	1.5 m	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X07200080.5M	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms		19.69 "	50 cm	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008.75M	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms		29.53 "	750 mm	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008036i	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms		36 in	91.44 cm	RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount
Amphenol Custom Cable Q-1X0720008018i	RG-58	Free Hanging (In-Line)	Male	11 GHz	Female	N-Type Jack	Bulkhead - Front Side Nut	Black	50 Ohms				RP-SMA to N-Type	RP-SMA Jack	Shielded	Panel Mount		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 145.62
		25	$ 142.87
		50	$ 140.12
		100	$ 137.36
		250	$ 134.61

Description

General part information

Q-1X0720 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-58 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
