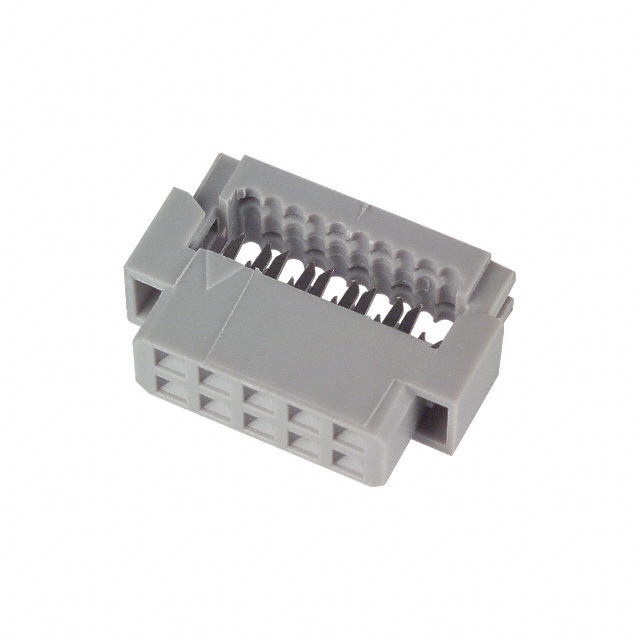

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog +2

152210-0100-GB

Active

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	152210-0100-GB	152210 Series

Cable Termination	IDC	IDC
Color	Gray	Gray
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through	Feed Through, Strain Relief, Polarizing Key, Closed End
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	10	10
Number of Rows	2	2
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Row Spacing	2 mm	2 mm
Row Spacing	0.079 in	0.079 in
Wire Gauge	28 AWG	28 AWG
Wire Type	Ribbon Cable	Ribbon Cable

152210 Series

CONN RCPT 10POS IDC 28AWG GOLD

Part	Wire Gauge	Row Spacing	Row Spacing	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Wire Type	Contact Type	Color	Contact Finish	Features	Number of Rows
3M 152210-0103-GB	28 AWG	2 mm	0.079 in	IDC	10	0.76 Ám	30 Áin	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	Ribbon Cable	Female Socket	Gray	Gold	Feed Through, Strain Relief	2
3M 152210-0100-GB	28 AWG	2 mm	0.079 in	IDC	10	0.76 Ám	30 Áin	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	Ribbon Cable	Female Socket	Gray	Gold	Feed Through	2
3M 152210-0110-GB	28 AWG	2 mm	0.079 in	IDC	10	0.76 Ám	30 Áin	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	Ribbon Cable	Female Socket	Gray	Gold	Feed Through, Polarizing Key	2
3M 152210-0100-GG	28 AWG	2 mm	0.079 in	IDC	10	0.38 µm	15 µin	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	Ribbon Cable	Female Socket	Gray	Gold	Feed Through	2
3M 152210-0200-GB	28 AWG	2 mm	0.079 in	IDC	10	0.76 Ám	30 Áin	Receptacle	0.079 in	2 mm	Free Hanging (In-Line)	Ribbon Cable	Female Socket	Gray	Gold	Closed End	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.78
		10	$ 5.19
		25	$ 4.69
		50	$ 4.34
		100	$ 4.03
		250	$ 3.66
		500	$ 3.41
		1000	$ 3.19
		2500	$ 2.92

Description

General part information

152210 Series

The 1522 series ribbon cable Wiremount Socket with copper alloy contacts with glass-filled polyester (PBT) insulator. It accepts 28AWG stranded wire. It mates with pack 20 (2 mm x 2 mm) grid pin strips.
