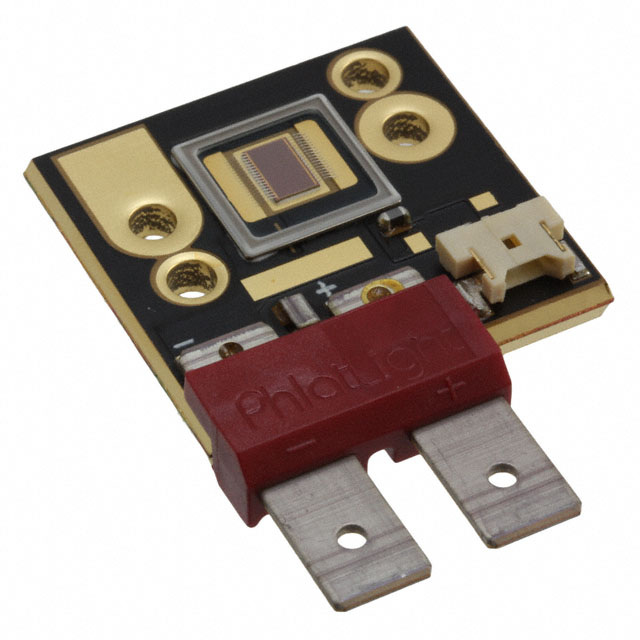

PT-120-RA-C11-MPE

Obsolete

Luminus Devices Inc.

LED MOD PT-120 RED

Search across all available documentation for this part.

Obsolete

Luminus Devices Inc.

LED MOD PT-120 RED

Technical Specifications

Parameters and characteristics for this part

Specification	PT-120-RA-C11-MPE

Type	LED Module

Part	Features	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Lumens/Watt @ Current - Test	Type	Height [z]	Configuration	Lens Type	Current - Test	Color	Current - Max [Max]	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Wavelength	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	Wavelength [Max]	Wavelength [Min]
Luminus Devices Inc. PT-120-RAX-L15-MPK	With Connector	3.1 V	2.6 mm	4.6 mm	52 lm/W	LED Module	5.7 mm	Rectangle	Flat	18 A	Amber	27 A	40 °C	28 mm	42 mm	613 nm	2925 lm	2450 lm	3400 lm
Luminus Devices Inc. PT-120-RA-C11-MPE						LED Module
Luminus Devices Inc. PT-120-G-L11-MPN	With Connector	5.2 V	2.6 mm	4.6 mm	59 lm/W	LED Module	5.7 mm	Rectangle	Flat	18 A	Green	27 A	40 °C	28 mm	42 mm	525 nm	5550 lm	4900 lm	6200 lm
Luminus Devices Inc. PT-120-B-L11-EPE	With Connector	3.9 V	2.6 mm	4.6 mm	14 lm/W	LED Module	5.7 mm	Rectangle	Flat	18 A	Blue	27 A	40 °C	28 mm	42 mm	462 nm	980 lm	815 lm	1145 lm
Luminus Devices Inc. PT-120-B-L11-EPD	With Connector	3.9 V	2.6 mm	4.6 mm	13 lm/W	LED Module	5.7 mm	Rectangle	Flat	18 A	Blue	27 A	40 °C	28 mm	42 mm	462 nm	910 lm	750 lm	1070 lm
Luminus Devices Inc. PT-120-G-C11-MPB	With Connector	4.9 V	2.6 mm	4.63 mm	28 lm/W	LED Module	5.61 mm	Rectangle	Flat	18 A	Green		40 °C	28 mm	42 mm	528 nm	2450 lm
Luminus Devices Inc. PT-120-B-L11-EPF101	With Connector	3.9 V	2.6 mm	4.6 mm	15 lm/W	LED Module	5.7 mm	Rectangle	Flat	18 A	Blue	27 A	40 °C	28 mm	42 mm		1050 lm			462 nm	454 nm
