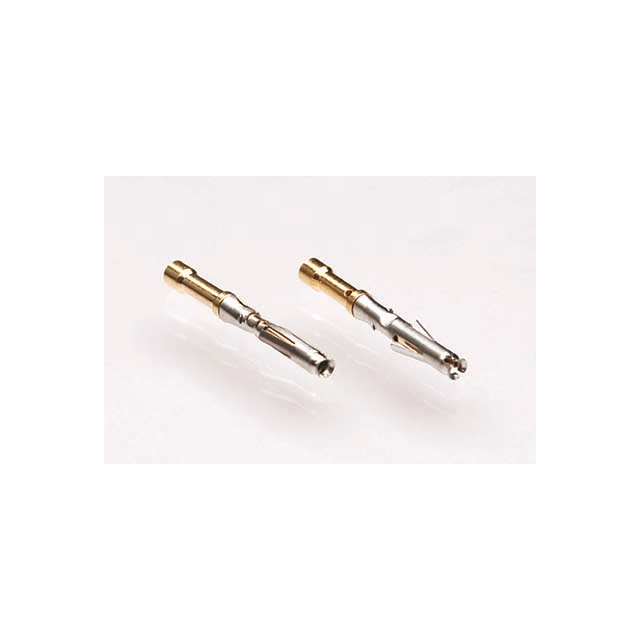

Specification	MS24W23G30

Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Size	20
Contact Termination	Crimp
Contact Type	Socket
Termination Finish	Nickel
Type	Machined
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	24 AWG
Wire Gauge or Range - mm² (Maximum)	0.25 mm²
Wire Gauge or Range - mm² (Minimum)	0.13 mm²

RTO Series

Part	Type	Contact Finish	Termination Finish	Contact Termination	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Size	Contact Type	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Finish Thickness	Contact Material	Shell Finish	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Number of Positions	Housing Color	Shielding	Connector Type	Primary Material	Fastening Type	Material Flammability Rating	Shell Size - Insert Length	Shell Size - Insert Width	Mounting Type	Features
McGill Microwave Systems MP14M23G15	Machined Signal	Gold	Nickel	Crimp	2 mm²	2.5 mm²	16 S	Pin	16 AWG	14 AWG	15 µin	Copper Alloy
McGill Microwave Systems MS24W23G30	Machined	Gold	Nickel	Crimp	0.13 mm²	0.25 mm²	20	Socket	25.5 AWG	24 AWG	30 µin	Copper Alloy
McGill Microwave Systems MS24W23G5	Machined	Gold	Nickel	Crimp	0.13 mm²	0.25 mm²	20	Socket	25.5 AWG	24 AWG	5 µin	Copper Alloy
McGill Microwave Systems MP28W23G15	Machined Signal	Gold	Nickel	Crimp	0.05 mm²	0.08 mm²	20	Pin	30 AWG	28 AWG	15 µin	Copper Alloy
McGill Microwave Systems MP16M23G30	Machined Signal	Gold	Nickel	Crimp	0.75 mm²	1.5 mm²	16 S	Pin	18 AWG	16 AWG	30 µin	Copper Alloy
McGill Microwave Systems RT06148SNH	For Female Sockets						16 S	Crimp					Nickel	N (Normal)	Dust Tight Waterproof	IP67	Zinc Alloy	8	Silver	Shielded	Plug Housing	Metal	Bayonet Lock	UL94 V-0	14 mm	8 mm	Free Hanging (In-Line)	Coupling Nut
McGill Microwave Systems MP14M23G10	Machined Signal	Gold	Nickel	Crimp	2 mm²	2.5 mm²	16 S	Pin	16 AWG	14 AWG	10 Ąin	Copper Alloy
