Specification	4-1969567-0

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.098 in
Row Spacing	0.098 in

1969567 Series

Part	Note	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Connector Type	Contact Termination	Mounting Type	Color	Insulation Material	Row Spacing	Number of Positions	Pitch	Fastening Type
TE Connectivity AMP Connectors 2-1969567-0	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	20	0.098 in	Latch Lock
TE Connectivity AMP Connectors 3-1969567-8	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	38	0.098 in	Latch Lock
TE Connectivity AMP Connectors 2-1969567-2	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	22	0.098 in	Latch Lock
TE Connectivity AMP Connectors 4-1969567-0	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	40	0.098 in	Latch Lock
TE Connectivity AMP Connectors 1-1969567-8	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	8	0.098 in	Latch Lock
TE Connectivity AMP Connectors 3-1969567-6	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	36	0.098 in	Latch Lock

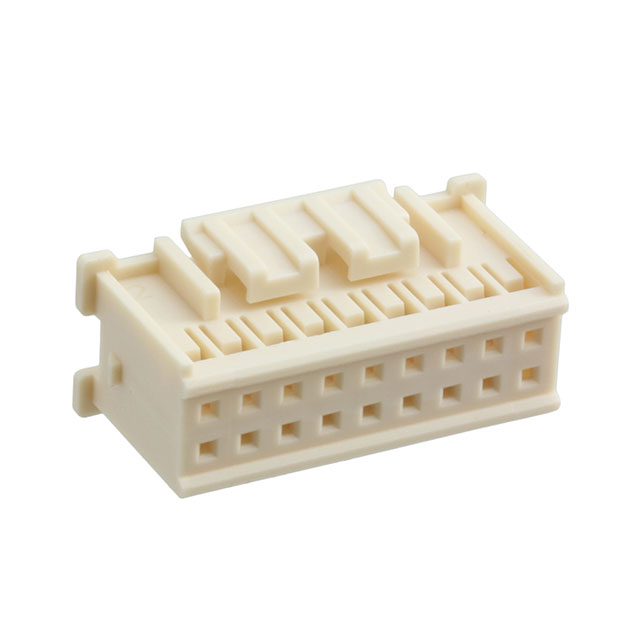

TE Connectivity AMP Connectors 1-1969567-2	Contacts Not Included	Female Socket	-55 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Nylon Polyamide (PA)	0.098 in	12	0.098 in	Latch Lock
TE Connectivity AMP Connectors 1969567-8	Contacts Not Included	Female Socket	-25 °C	105 °C	2	Plug	Crimp	Free Hanging (In-Line)	Natural	Glass Filled Nylon Polyamide (PA)	0.098 in	8	0.098 in	Latch Lock
