4-881545-2
ActiveTE Connectivity AMP Connectors

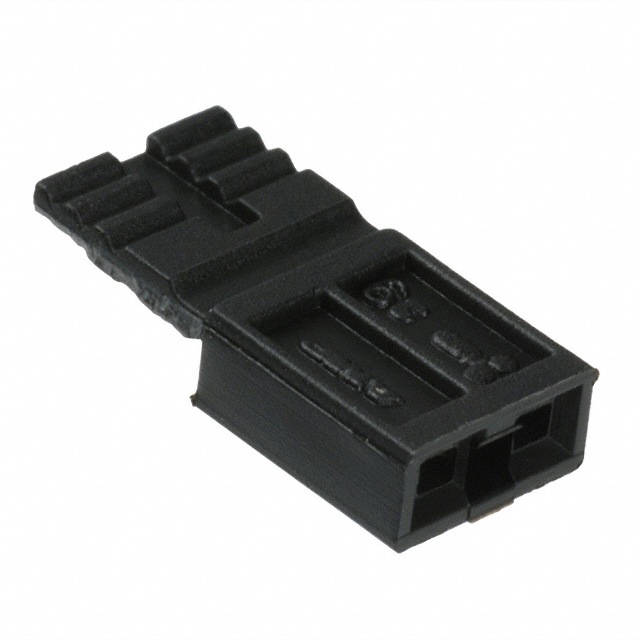

SHUNT LP W HANDLE 2 POS SN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-881545-2
ActiveTE Connectivity AMP Connectors
SHUNT LP W HANDLE 2 POS SN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-881545-2 | 881545 Series |
|---|---|---|
| Color | Black | Black, Natural, Red |
| Contact Finish | Tin | Gold, Tin |
| Contact Finish Thickness | - | 0.38 - 0.76 Ám |
| Contact Finish Thickness | - | 15 - 30 Áin |
| Current Rating (Amps) | 3 A | 3 A |
| Gender | Female Sockets | Female Sockets |
| Height | - | 0.228 in |
| Height | - | 5.8 mm |
| Height [z] | 10.9 mm | 10.9 mm |
| Height [z] | 0.429 " | 0.429 " |
| Housing Material | Thermoplastic, Glass Filled | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Type | Grip, Open Top | Grip, Open Top |
881545 Series
SHUNT LP W/HANDLE 2 POS 30AU
| Part | Gender | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Finish | Current Rating (Amps) | Pitch [x] | Pitch [x] | Height [z] | Height [z] | Color | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Type | Height [diameter] | Height [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 881545-2 | Female Sockets | 1 x 2 | 2 | Gold | 3 A | 2.54 mm | 0.1 in | 10.9 mm | 0.429 " | Black | UL94 V-0 | 0.76 Ám | 30 Áin | Thermoplastic, Glass Filled | Grip, Open Top | ||
TE Connectivity AMP Connectors 881545-5 | Female Sockets | 1 x 2 | 2 | Gold | 3 A | 2.54 mm | 0.1 in | 10.9 mm | 0.429 " | Natural | UL94 V-0 | 0.38 µm | 15 µin | Thermoplastic, Glass Filled | Grip, Open Top | ||
TE Connectivity AMP Connectors 881545-1 | Female Sockets | 1 x 2 | 2 | Gold | 3 A | 2.54 mm | 0.1 in | 10.9 mm | 0.429 " | Black | UL94 V-0 | 0.38 µm | 15 µin | Thermoplastic, Glass Filled | Grip, Open Top | ||
TE Connectivity AMP Connectors 1-881545-4 | Female Sockets | 1 x 2 | 2 | Tin | 3 A | 2.54 mm | 0.1 in | Black | UL94 V-0 | Thermoplastic, Glass Filled | Open Top | 0.228 in | 5.8 mm | ||||
TE Connectivity AMP Connectors 2-881545-2 | Female Sockets | 1 x 2 | 2 | Gold | 3 A | 2.54 mm | 0.1 in | 10.9 mm | 0.429 " | Red | UL94 V-0 | 0.76 Ám | 30 Áin | Thermoplastic, Glass Filled | Grip, Open Top | ||
TE Connectivity AMP Connectors 1-881545-2 | Female Sockets | 1 x 2 | 2 | Gold | 3 A | 2.54 mm | 0.1 in | Black | UL94 V-0 | 0.76 Ám | 30 Áin | Thermoplastic, Glass Filled | Open Top | 0.228 in | 5.8 mm | ||
TE Connectivity AMP Connectors 4-881545-2 | Female Sockets | 1 x 2 | 2 | Tin | 3 A | 2.54 mm | 0.1 in | 10.9 mm | 0.429 " | Black | UL94 V-0 | Thermoplastic, Glass Filled | Grip, Open Top | ||||
TE Connectivity AMP Connectors 1-881545-1 | Female Sockets | 1 x 2 | 2 | Gold | 3 A | 2.54 mm | 0.1 in | Black | UL94 V-0 | 0.38 µm | 15 µin | Thermoplastic, Glass Filled | Open Top | 0.228 in | 5.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.15 | |||
Description
General part information
881545 Series
2 (1 x 2) Position Shunt Connector Black Open Top, Grip 0.100" (2.54mm) Tin
