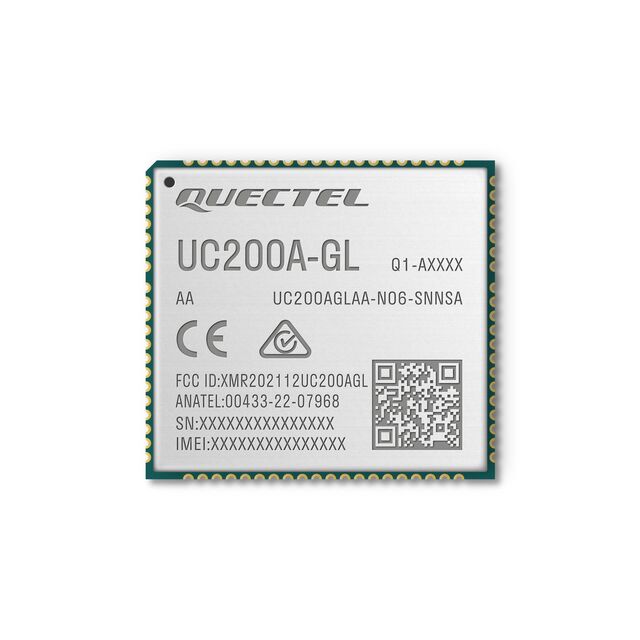

UC200AGLAA-N06-SNNSA

Active

Quectel

RF TXRX MOD UMTS/HSPA+ SMD

Search across all available documentation for this part.

Active

Quectel

RF TXRX MOD UMTS/HSPA+ SMD

Technical Specifications

Parameters and characteristics for this part

Specification	UC200AGLAA-N06-SNNSA

Utilized IC / Part	ASR1803S

Part	Serial Interfaces	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Package / Case	RF Family/Standard	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Mounting Type	Utilized IC / Part
Quectel UC200TEMAA-N06-SNNSA	ADC I2C PCM SDIO UART USB	Antenna Not Included	4.5 V	3.4 V	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	Module	Cellular	900 MHz 1800 GHz	-35 °C	75 ░C	21 Mbps	Surface Mount
Quectel UC200TEMAA-N06-MN0AA	ADC I2C PCM SDIO UART USB	Antenna Not Included	4.5 V	3.4 V	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	Module	Cellular	900 MHz 1800 GHz	-35 °C	75 ░C	21 Mbps	Surface Mount
Quectel UC200AGLAA-N06-SNNSA													ASR1803S
Quectel UC200TEMAA-N06-TA0AA	ADC I2C PCM SDIO UART USB	Antenna Not Included	4.5 V	3.4 V	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	Module	Cellular	900 MHz 1800 GHz	-35 °C	75 ░C	21 Mbps	Surface Mount
Quectel UC200TGLAA-N06-MN0SA	ADC I2C PCM SDIO UART USB	Antenna Not Included	4.5 V	3.4 V	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	Module	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	-35 °C	75 ░C	21 Mbps	Surface Mount
Quectel UC200TEMAA-N06-HX	ADC I2C PCM SDIO UART USB	Antenna Not Included	4.5 V	3.4 V	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	Module	Cellular	900 MHz 1800 GHz	-35 °C	75 ░C	21 Mbps	Surface Mount
Quectel UC200TGLAA-N06-MN0AA	ADC I2C PCM SDIO UART USB	Antenna Not Included	4.5 V	3.4 V	EDGE GPRS GSM HSPA+ LTE UMTS WCDMA	Module	Cellular	850 MHz 900 MHz 1800 MHz 1900 MHz	-35 °C	75 ░C	21 Mbps	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 25.38

General part information

Transceiver Module

Technical documentation and resources

No documents available
