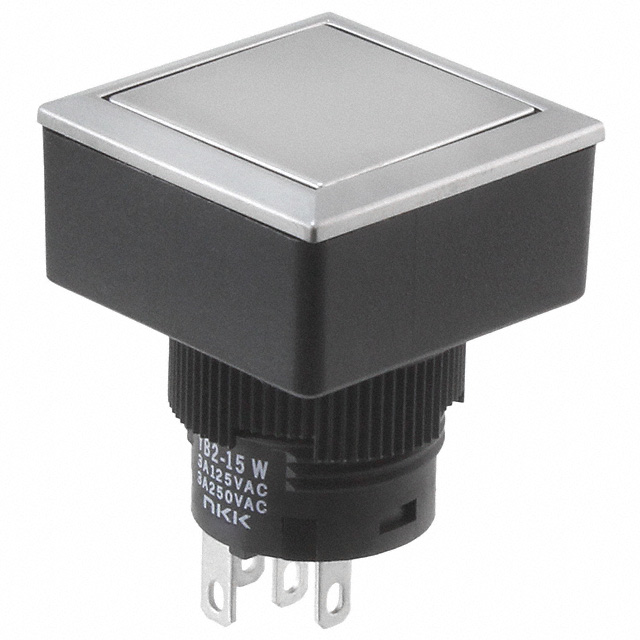

Specification	YB216CWSPW01-N-P

Actuator Marking	No Marking
Actuator Type	Square, Flush, Button
Circuit	SPDT
Color - Actuator/Cap	Brushed Chrome
Current Rating	3 A
Electrical Life (Cycles)	100000 Cycles
Features	Tactile Feedback
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Length	21 mm
Panel Cutout Shape	Square
Panel Cutout Width	21 mm
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB216C Series

Part	Current Rating	Quick Connect Size (0.110")	Termination Style	Switch Function	Voltage Rating - AC	Ingress Protection IP Rating	Ingress Protection Description	Actuator Marking	Color - Actuator/Cap	Voltage Rating - DC	Mounting Type	Circuit	Color	Illumination Type	Illumination Voltage (Nominal)	Operating Temperature (Min)	Operating Temperature (Max)	Type	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Features	Electrical Life (Cycles)	Mechanical Life (Cycles)	Panel Cutout Width	Panel Cutout Length
NKK Switches YB216CWCKG01-5C-CB	0.4 VA	0.11 in	Quick Connect Solder	On-On	28 V	IP65	Dust Tight Water Resistant	No Marking	Red (White Filter/Diffuser)	28 V	Front Panel Mount	SPDT	Red	LED	1.9 VDC	-25 °C	50 °C	Illuminated Standard	Button Flush Round	22 mm	Circular	Tactile Feedback	100000 Cycles	200000 Cycles
NKK Switches YB216CWSKW01	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking		30 V	Front Panel Mount	SPDT				-25 °C	70 °C	Standard	Plunger for Cap		Square	Tactile Feedback	100000 Cycles	200000 Cycles	21 mm	21 mm
NKK Switches YB216CWSPW01-N-P	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking	Brushed Chrome	30 V	Front Panel Mount	SPDT				-25 °C	70 °C	Standard	Button Flush Square		Square	Tactile Feedback	100000 Cycles	200000 Cycles	21 mm	21 mm
NKK Switches YB216CWSKW01/CUL	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking		30 V	Front Panel Mount	SPDT				-25 °C	70 °C	Standard	Plunger for Cap		Square	Tactile Feedback	100000 Cycles	200000 Cycles	21 mm	21 mm
NKK Switches YB216CWCKW01-6B-JB	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking	Clear (White Filter/Diffuser)	30 V	Front Panel Mount	SPDT	White	LED	3.3 VDC	-25 °C	50 °C	Illuminated Standard	Button Flush Round	22 mm	Circular	Tactile Feedback	100000 Cycles	200000 Cycles
NKK Switches YB216CWCPW01-6G-JS	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking	Silver	30 V	Front Panel Mount	SPDT	Blue	LED	3.6 VDC	-25 °C	50 °C	Illuminated Standard	Button Flush Round	22 mm	Circular	Tactile Feedback	100000 Cycles	200000 Cycles
NKK Switches YB216CWCKW01/CUL-5C12-CB	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant		Red (White Filter/Diffuser)	30 V	Front Panel Mount	DPDT	Red	LED	12 V	-25 °C	50 °C	Illuminated Standard	Button Flush Round	22 mm	Circular		100000 Cycles	200000 Cycles
NKK Switches YB216CWCSG01	0.4 VA	0.11 in	Quick Connect Solder	On-On	28 V	IP65	Dust Tight Water Resistant	No Marking		28 V	Front Panel Mount	SPDT				-25 °C	70 °C	Standard	Plunger for Cap	22 mm	Circular	Tactile Feedback	100000 Cycles	200000 Cycles
NKK Switches YB216CWCKW01-N-CB	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking	Red (White Filter/Diffuser)	30 V	Front Panel Mount	SPDT				-25 °C	70 °C	Standard	Button Flush Round	22 mm	Circular	Tactile Feedback	100000 Cycles	200000 Cycles
NKK Switches YB216CWSKW01-5D24-JB	3 A	0.11 in	Quick Connect Solder	On-On	125 V	IP65	Dust Tight Water Resistant	No Marking	Clear (White Filter/Diffuser)	30 V	Front Panel Mount	SPDT	Amber	LED	24 V	-25 °C	50 °C	Illuminated Standard	Button Flush Square		Square	Tactile Feedback	100000 Cycles	200000 Cycles	21 mm	21 mm
